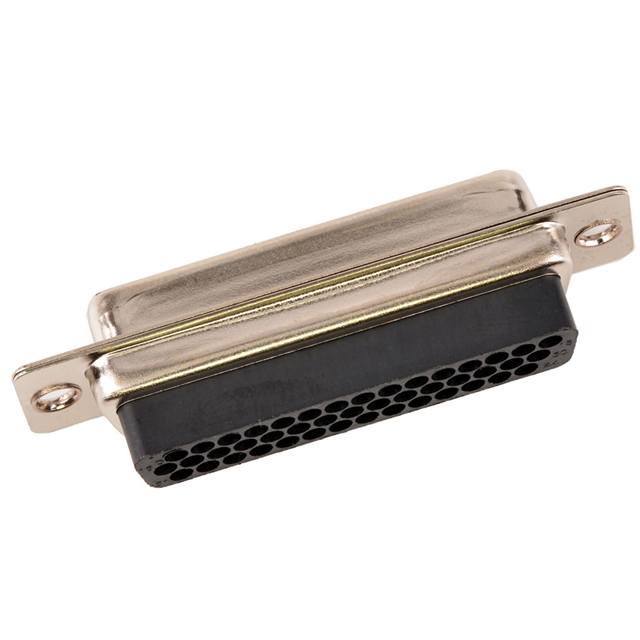

Specification	1731130075

Connector Layout	DB, B, High Density
Connector Style	High Density, D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Thermoplastic, Glass Filled
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	44
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3

173113 Series

FCT High-Density D-Sub Connector, Male, Straight, PCB Through Hole, Gold Plating, 78 Circuits

...

Part	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Mounting Type	Shell Material	Finish	Connector Style	Flange Feature	Contact Type	Features	Contact Finish	Number of Positions	Ingress Protection	Number of Rows	Termination	Shell Size	Connector Layout	Current Rating	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Material	Dielectric Material	Backset Spacing	Primary Material	Note	Wire Gauge	Contact Form
Molex 1731130237	0	Flash	Flash	Female Sockets Receptacle	Through Hole	Steel	Nickel Plated	D-Sub High Density	Board Side (4-40)	Signal	Board Lock	Gold	62	IP20	3	Solder	4	C DC High Density	3 A	UL94 V-0	-55 °C	105 °C	Black	Copper Alloy	Glass Filled Thermoplastic
Molex 1731130382
Molex 1731130238	0	Flash	Flash	Female Sockets Receptacle	Through Hole	Steel	Nickel Plated	D-Sub High Density	Board Side (4-40)	Signal	Board Lock	Gold	78	IP20	4	Solder	5	D DD High Density	3 A	UL94 V-0	-55 °C	105 °C	Black	Copper Alloy	Glass Filled Thermoplastic
Molex 1731130136
Molex 1731130242
Molex 1731130210	0	Flash	Flash	Male Pins Plug	Right Angle Through Hole	Steel	Nickel Plated	D-Sub High Density	Housing Shell (4-40)	Signal	Board Lock Grounding Indents Mounting Brackets	Gold	62	IP20	3	Solder	4	C DC High Density	3 A	UL94 V-0	-55 °C	105 °C	Black	Copper Alloy	Glass Filled Thermoplastic	0.45 in
Molex 1731130197	0	Flash	Flash	Female Sockets Receptacle	Through Hole	Steel	Nickel Plated	D-Sub High Density	Housing Shell (Unthreaded)	Signal		Gold	15		3	Solder	1	DE E High Density	3 A	UL94 V-0	-55 °C	105 °C		Copper Alloy	Glass Filled Thermoplastic		Metal
Molex 1731130104				Receptacle for Female Contacts	Panel Mount	Steel	Tin Plated	D-Sub High Density	Housing Shell (Unthreaded)	Signal	Shielded		62	IP20	3		4	C DC High Density			-55 °C	130 °C	Black		Thermoplastic			Contacts Not Included
Molex 1731130060	0	Flash	Flash	Male Pins Plug	Free Hanging (In-Line)	Steel	Nickel Plated	D-Sub High Density	Housing Shell (Unthreaded)	Signal	Grounding Indents	Gold	26		3	Solder Cup	2	A DA High Density	3 A		-55 °C	105 °C	Black		Glass Filled Thermoplastic				22 AWG	Stamped
Molex 1731130257
