1408343-1

Active

TE Connectivity AMP Connectors

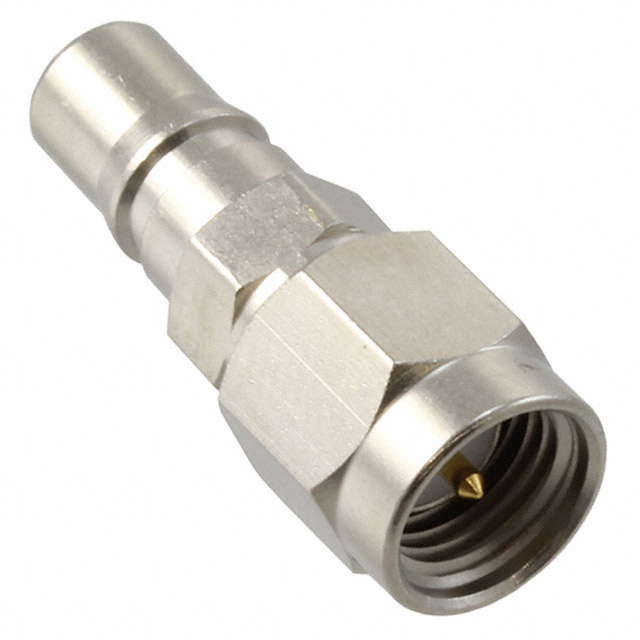

CONN ADAPT SMA PLUG TO QMA JACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT SMA PLUG TO QMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	1408343-1

Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	QMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT SMA PLUG TO QMA JACK

Part	Conversion Type	Convert From (Adapter End)	Impedance	Adapter Type	Center Contact Material	Body Material	Fastening Type	Convert To (Adapter End)	Dielectric Material	Style	Center Contact Plating	Body Finish	Frequency - Max [Max]	Mounting Type
TE Connectivity AMP Connectors 1408343-1	Between Series	SMA Plug, Male Pin	50 Ohms	Plug to Jack	Beryllium Copper	Brass	Snap-On, Threaded	Female Socket, QMA Jack	Polytetrafluoroethylene (PTFE)	Straight	Gold	Nickel	6000 MHz	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To QMA Jack, Female Socket 50 Ohms
