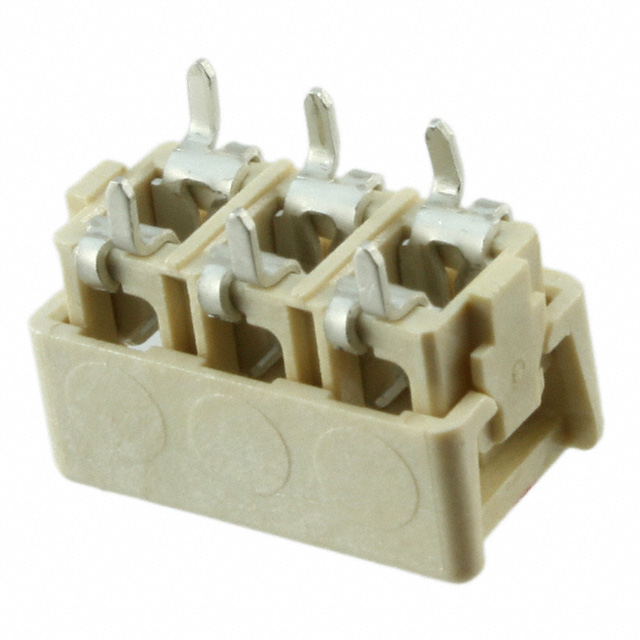

3-2106489-3
ActiveTE Connectivity AMP Connectors
CONNECTOR, THRU HOLE-IDC, 3 POS, 24AWG
3-2106489-3
ActiveTE Connectivity AMP Connectors
CONNECTOR, THRU HOLE-IDC, 3 POS, 24AWG
Description
General part information
Insulation Displacement Connectors Closed End Series
Wire-to-Board, 3 Position, .16 mm [4 in] Centerline, Printed Circuit Board, Insulation Displacement Connectors Closed End, Poke-In Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2106489-3 |
|---|---|
| Board-Side Pitch | 0.157 in |
| Cable Pitch | 0.157 in |
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Closed End |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | 24 AWG |
