A6A-16RS
ActiveOmron Electronics Inc-EMC Div

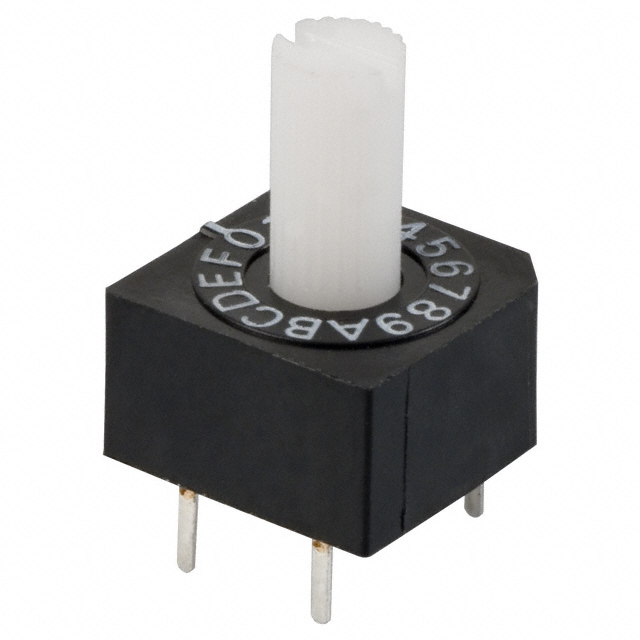

SWITCH ROTARY DIP HEX 0.1A 28V
Deep-Dive with AI
Search across all available documentation for this part.
A6A-16RS
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.1A 28V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6A-16RS | A6A Series |
|---|---|---|
| Actuator Level | Raised | Raised, Flush, Recessed |
| Actuator Type | Rotary with Shaft | Rotary with Shaft, Rotary for Tool, Rotary with Knob |
| Circuit | Hexadecimal | Hexadecimal Complement, BCD, BCD Complement, Hexadecimal |
| Current Rating (Amps) | 100 mA | 100 mA |
| Electrical Life | 2000 Steps | 2000 Steps |
| Features | IP64 - Dust Tight, Water Resistant | IP64 - Dust Tight, Water Resistant |
| Height Above Board | 0.531 in | 0.531 in |
| Height Above Board | 13.49 mm | 13.49 mm |
| Height Above Board | - | 6.2 - 7.5 mm |
| Height Above Board | - | 0.244 - 0.295 in |
| Length | 10 mm | 10 mm |
| Length | 0.394 in | 0.394 in |
| Mechanical Life | 10000 Steps | 10000 Steps |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 |
| Operating Temperature [Max] [custom] | 158 °F | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Pitch | Full | Full |
| Pitch [x] | 0.1 in | 0.1 in |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating | 28 VDC | 28 VDC |
| Washable | True | True |
A6A Series
SW ROTARY DIP HEX COMP 0.1A 28V
| Part | Mounting Type | Electrical Life | Circuit | Voltage Rating | Mechanical Life | Height Above Board | Height Above Board | Length | Length | Pitch [x] | Pitch | Pitch [x] | Termination Style | Actuator Type | Actuator Level | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Features | Number of Positions | Washable | Current Rating (Amps) | Height Above Board [z] | Height Above Board [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A6A-16CS | Through Hole | 2000 Steps | Hexadecimal Complement | 28 VDC | 10000 Steps | 0.531 in | 13.49 mm | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary with Shaft | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 16 | 100 mA | ||||
Omron Electronics Inc-EMC Div A6A-10R | Through Hole | 2000 Steps | BCD | 28 VDC | 10000 Steps | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary for Tool | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 100 mA | 7.5 mm | 0.295 in | 10 | ||||
Omron Electronics Inc-EMC Div A6A-10C | Through Hole | 2000 Steps | BCD Complement | 28 VDC | 10000 Steps | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary for Tool | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 100 mA | 7.5 mm | 0.295 in | 10 | ||||
Omron Electronics Inc-EMC Div A6A-16CW | Through Hole | 2000 Steps | Hexadecimal Complement | 28 VDC | 10000 Steps | 0.531 in | 13.49 mm | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary with Knob | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 16 | 100 mA | ||||
Omron Electronics Inc-EMC Div A6A-10RW | Through Hole | 2000 Steps | BCD | 28 VDC | 10000 Steps | 0.531 in | 13.49 mm | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary with Knob | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 100 mA | 10 | ||||
Omron Electronics Inc-EMC Div A6A-10RS | Through Hole | 2000 Steps | BCD | 28 VDC | 10000 Steps | 0.531 in | 13.49 mm | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary with Shaft | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 100 mA | 10 | ||||
Omron Electronics Inc-EMC Div A6A-16RF | Through Hole | 2000 Steps | Hexadecimal | 28 VDC | 10000 Steps | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary for Tool | Flush, Recessed | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 16 | 100 mA | 6.2 mm | 0.244 " | ||||
Omron Electronics Inc-EMC Div A6A-16C | Through Hole | 2000 Steps | Hexadecimal Complement | 28 VDC | 10000 Steps | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary for Tool | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 16 | 100 mA | 7.5 mm | 0.295 in | ||||
Omron Electronics Inc-EMC Div A6A-10CF | Through Hole | 2000 Steps | BCD Complement | 28 VDC | 10000 Steps | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary for Tool | Flush, Recessed | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 100 mA | 6.2 mm | 0.244 " | 10 | ||||
Omron Electronics Inc-EMC Div A6A-16R | Through Hole | 2000 Steps | Hexadecimal | 28 VDC | 10000 Steps | 10 mm | 0.394 in | 0.1 in | Full | 2.54 mm | PC Pin | Rotary for Tool | Raised | -10 °C | 158 °F | IP64 - Dust Tight, Water Resistant | 16 | 100 mA | 7.5 mm | 0.295 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.16 | |
| 10 | $ 8.75 | |||
| 25 | $ 7.96 | |||
| 100 | $ 6.87 | |||
| 300 | $ 6.25 | |||
| 500 | $ 5.79 | |||
| 1000 | $ 5.37 | |||
Description
General part information
A6A Series
Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 100mA 28VDC
