Description
General part information

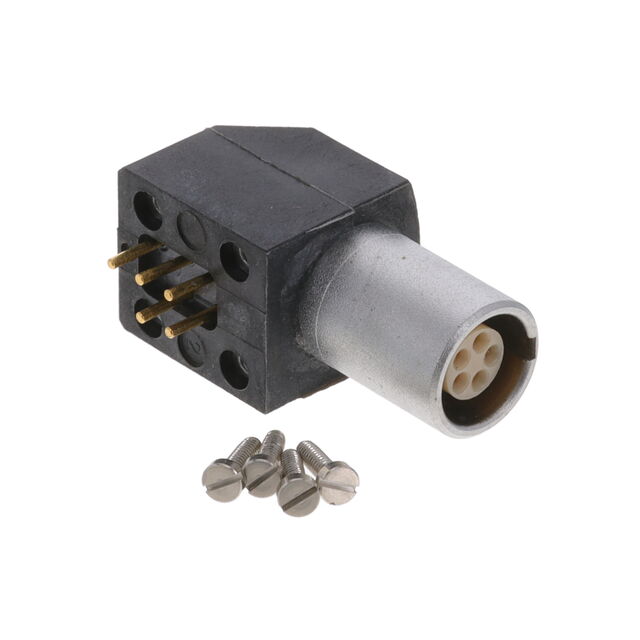

GF0L0C-P05QF00-S000
5 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | GF0L0C-P05QF00-S000 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Military, Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 6 A |
| Fastening Type | Push-Pull |
| Features | Ground |
| Ingress Protection Description | Dust Protected |
| Ingress Protection IP Rating | IP50 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 5 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 0 ° |
| Primary Material | Metal |
| Shell Finish | Chrome, Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
| Shell Size - Insert | 0 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 366 V |
