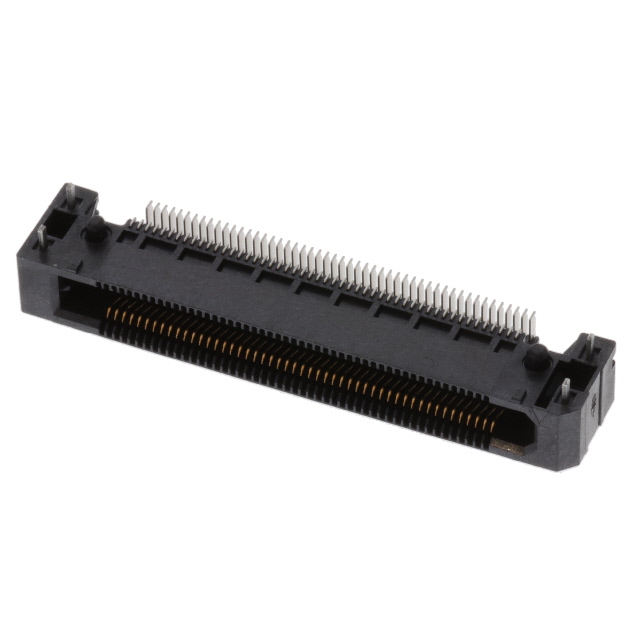

ERF5-050-01-L-D-RA-TR

Active

Samtec Inc.

MEZZANINE CONN, RCPT, 100POS, 2ROW

Search across all available documentation for this part.

Active

Samtec Inc.

MEZZANINE CONN, RCPT, 100POS, 2ROW

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-050-01-L-D-RA-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	4.75 mm
Height Above Board [z]	0.187 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Mounting Type	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Connector Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Height Above Board
Samtec Inc. ERF5-050-07.0-L-DV-K-TR	0.5 mm	0.02 in	Surface Mount	Board Guide Pick and Place	2	10 Áin	0.25 Ám	9 mm 11 mm 12 mm	Socket Center Strip Contacts	Gold	6.9 mm	0.272 in	100
Samtec Inc. ERF5-050-05.0-L-DV-WT-TR	0.5 mm	0.02 in	Surface Mount	Board Guide Solder Retention	2	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Socket Center Strip Contacts	Gold	4.9 mm	0.193 in	100
Samtec Inc. ERF5-050-01-L-D-RA	0.5 mm	0.02 in	Surface Mount Right Angle	Board Guide	2	10 Áin	0.25 Ám		Socket Center Strip Contacts	Gold		0.187 in	100	4.75 mm
Samtec Inc. ERF5-050-01-L-D-RA-TR	0.5 mm	0.02 in	Surface Mount Right Angle	Board Guide	2	10 Áin	0.25 Ám		Socket Center Strip Contacts	Gold		0.187 in	100	4.75 mm
Samtec Inc. ERF5-050-07.0-L-DV	0.5 mm	0.02 in	Surface Mount	Board Guide	2	10 Áin	0.25 Ám	9 mm 11 mm 12 mm	Socket Center Strip Contacts	Gold	6.9 mm	0.272 in	100
Samtec Inc. ERF5-050-05.0-L-DV-TR	0.5 mm	0.02 in	Surface Mount	Board Guide	2	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Socket Center Strip Contacts	Gold	4.9 mm	0.193 in	100
Samtec Inc. ERF5-050-05.0-S-DV-K-TR	0.5 mm	0.02 in	Surface Mount	Board Guide Pick and Place	2	30 Áin	0.76 Ám	7 mm 9 mm 10 mm	Socket Center Strip Contacts	Gold	4.9 mm	0.193 in	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Socket, Center Strip Contacts Surface Mount, Right Angle Gold
