T14X0100000-000
ActiveTE Connectivity AMP Connectors
H10B-AG
Deep-Dive with AI
Search across all available documentation for this part.
T14X0100000-000
ActiveTE Connectivity AMP Connectors
H10B-AG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T14X0100000-000 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H10B |
| Size / Dimension [x] | 95.2 mm |
| Size / Dimension [x] | 3.748 " |
| Size / Dimension [y] | 1.799 " |
| Size / Dimension [y] | 45.7 mm |
| Size / Dimension [z] | 1.173 in |
| Size / Dimension [z] | 29.8 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.67 | |
| 10 | $ 6.94 | |||
| 25 | $ 6.76 | |||
| 50 | $ 6.50 | |||
| 100 | $ 6.46 | |||
T14X Series
H10B-AG
| Part | Housing Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Housing Finish | Housing Material | Connector Type | Ingress Protection | Size | Operating Temperature [Max] | Operating Temperature [Min] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T14X0100000-000 | Gray | 95.2 mm | 1.799 " | 1.173 in | 3.748 " | 45.7 mm | 29.8 mm | Powder Coated | Aluminum Alloy, Die Cast | Base - Panel Mount | IP65 - Dust Tight, Water Resistant | H10B | 125 °C | -40 °C | Bottom Entry |
Description
General part information
T14X Series

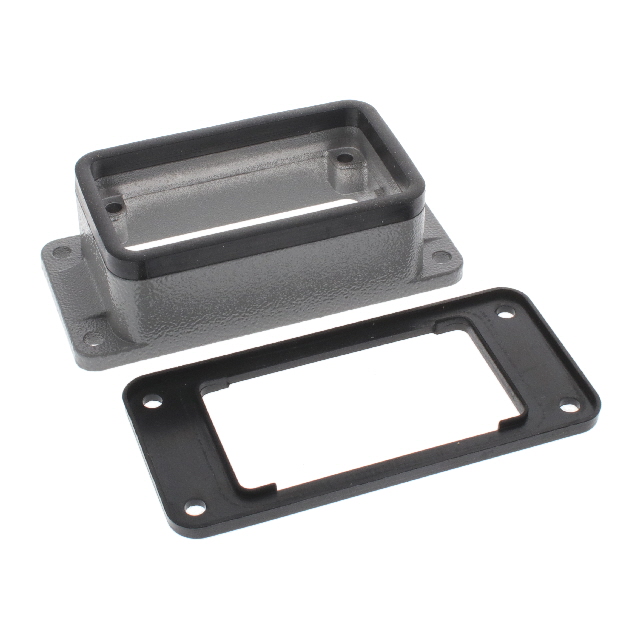

Base - Panel Mount Connector Bottom Entry H10B IP65 - Dust Tight, Water Resistant
