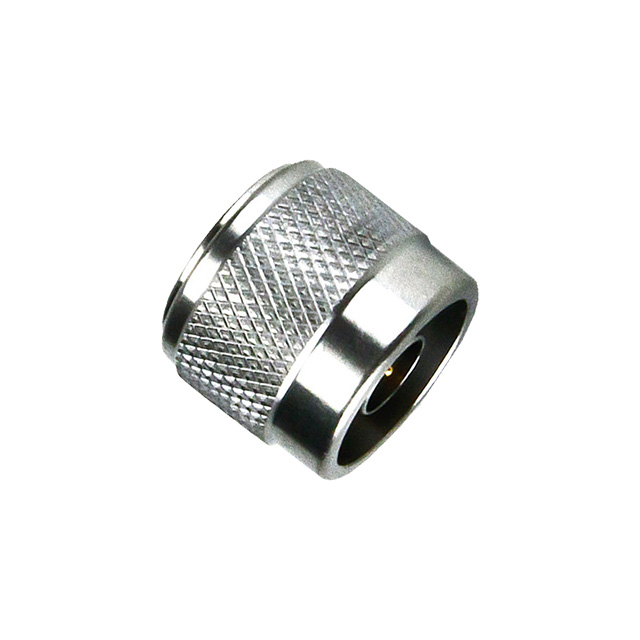

CT3367

Active

Cal Test Electronics

CONN TERMINATR PLUG N TYPE 50OHM

Deep-Dive with AI

Search across all available documentation for this part.

CT3367

Active

Cal Test Electronics

CONN TERMINATR PLUG N TYPE 50OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT3367	- Series

Adapter Series	-	N to N, Dual, N to N, BNC to BNC, SMA to SMA, Dual, BNC to N
Adapter Type	-	Jack to Jack, Plug to Jack, Plug to Plug
Body Finish	-	Nickel, White Bronze, Gold
Body Material	-	Brass
Center Contact Material	-	Brass, Beryllium Copper
Center Contact Plating	-	Gold
Center Gender	-	Female to Female, Male to Male
Connector Style	N Type	N Type
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Finish	Gold	Gold
Conversion Type	-	Same Series, Between Series
Convert From (Adapter End)	-	N Jack, Female Socket, BNC Plug, Male Pin, SMA Plug, Male Pin, BNC Jack, N Plug, Male Pin
Convert To (Adapter End)	-	N Jack, Female Socket (2), Female Socket, BNC Jack, SMA Plug, Male Pin, SMA Jack, N Plug
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock, Threaded
Frequency - Max	-	4 - 12.4 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.2 dB
Mounting Type	Free Hanging, Cap	Free Hanging (In-Line), Right Angle, Free Hanging, Cap
Operating Temperature	-	-65 - -20 C
Operating Temperature	-	80 - 165 C
Style	-	T-Shape, Straight, Right Angle

- Series

CONN TYPE N-TRIAXIAL ADAPTER 0HZ TO 8GHZ 50OHM T STYLE (3)RCP GOLD BAG

Part	Impedance	Body Finish	Dielectric Material	Body Material	Convert To (Adapter End)	Center Contact Material	Adapter Type	Adapter Series	Mounting Type	Style	Center Contact Plating	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Frequency - Max [Max]	Conversion Type	Fastening Type	Insertion Loss	Contact Finish	Connector Type	Connector Style
Cal Test Electronics CT2761	50 Ohms	Nickel	Polytetrafluoroethylene (PTFE)	Brass	Female Socket (2), N Jack	Brass	Jack to Jack	N to N, Dual	Free Hanging (In-Line)	T-Shape	Gold	Female to Female	-20 C	80 C	Female Socket, N Jack	8 GHz	Same Series
Cal Test Electronics CT3350	50 Ohms	White Bronze	Polytetrafluoroethylene (PTFE)	Brass	Female Socket, N Jack	Beryllium Copper, Brass	Jack to Jack	N to N	Free Hanging (In-Line)	Straight	Gold	Female to Female			Female Socket, N Jack	11 GHz	Same Series
Cal Test Electronics CT3313	50 Ohms	Nickel	Polytetrafluoroethylene (PTFE)	Brass	BNC Jack, Female Socket	Beryllium Copper, Brass	Plug to Jack	BNC to BNC	Free Hanging (In-Line), Right Angle	Right Angle	Gold				BNC Plug, Male Pin	4 GHz	Same Series	Bayonet Lock	0.2 dB
Cal Test Electronics CT3395	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, SMA Plug	Beryllium Copper, Brass	Plug to Plug	SMA to SMA	Free Hanging (In-Line)	Straight	Gold	Male to Male	-65 ░C	165 °C	SMA Plug, Male Pin	12.4 GHz	Same Series
Cal Test Electronics CT2411	50 Ohms	Nickel	Polytetrafluoroethylene (PTFE)	Brass	BNC Jack, Female Socket (2)	Brass	Plug to Jack	BNC to BNC, Dual	Free Hanging (In-Line)	T-Shape	Gold		-20 C	80 C	BNC Plug, Male Pin	4 GHz	Same Series	Bayonet Lock	0.2 dB
Cal Test Electronics CT3367	50 Ohms								Cap, Free Hanging											Gold	Male Pin, Plug	N Type
Cal Test Electronics CT3319	50 Ohms	White Bronze	Polytetrafluoroethylene (PTFE)	Brass	Female Socket (2), N Jack	Beryllium Copper, Brass	Jack to Jack	N to N	Free Hanging (In-Line)	T-Shape	Gold	Female to Female	-55 °C	155 °C	Female Socket, N Jack	11 GHz	Same Series
Cal Test Electronics CT2771	50 Ohms	Nickel	Polytetrafluoroethylene (PTFE)	Brass	Female Socket, N Jack	Beryllium Copper, Brass	Jack to Jack	BNC to N	Free Hanging (In-Line)	Straight	Gold	Female to Female	-20 C	80 C	BNC Jack, Female Socket	4 GHz	Between Series	Bayonet Lock, Threaded	0.2 dB
Cal Test Electronics CT3391	50 Ohms	Nickel	Polytetrafluoroethylene (PTFE)	Brass	Female Socket, SMA Jack	Beryllium Copper, Brass	Plug to Jack		Free Hanging (In-Line)	Straight	Gold				N Plug, Male Pin	11 GHz	Between Series
Cal Test Electronics CT3344	50 Ohms	White Bronze	Polytetrafluoroethylene (PTFE)	Brass	BNC Jack, Female Socket (2)	Beryllium Copper, Brass	Jack to Jack	BNC to BNC, Dual	Free Hanging (In-Line)	T-Shape	Gold	Female to Female			BNC Jack, Female Socket	10 GHz	Same Series	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 105.00

Description

General part information

- Series

Terminator Coax Connector Plug, Male Pin N Type 50 Ohms
