Description
General part information
09670090443

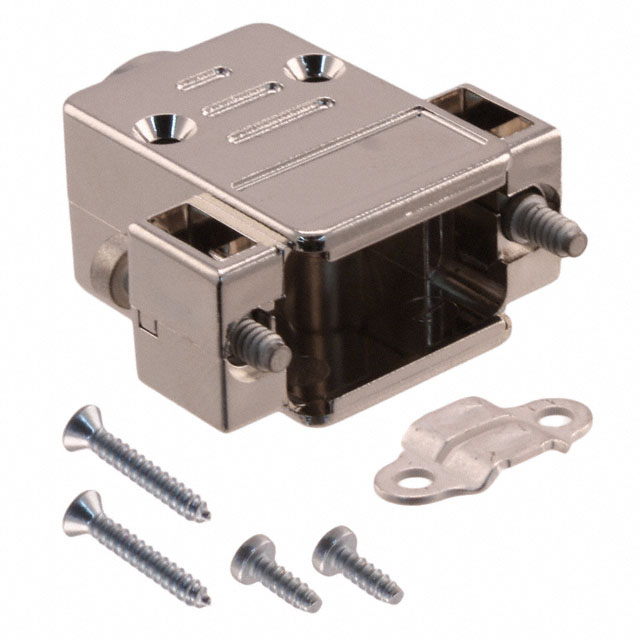

The 09 67 009 0443 is a D-sub 9-contact Top Entry Hood with 4-40 short locking jack screws, size 1 (E). Made of metallized thermoplastic with cable clamp termination.
Technical Specifications
Parameters and characteristics for this part
| Specification | 09670090443 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit Angle | 180 ° |
| Cable Type | Round |
| Compatible D-Sub Size | 9pos, HD15pos |
| Compatible Shell Size | E |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Cable Clamp |
| Material | Metallized, Plastic |
| Number of Positions | 9 |
| Primary Material | Plastic |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
