0300-02-056-095-0-0-990

Active

Murrplastik Systems, Inc.

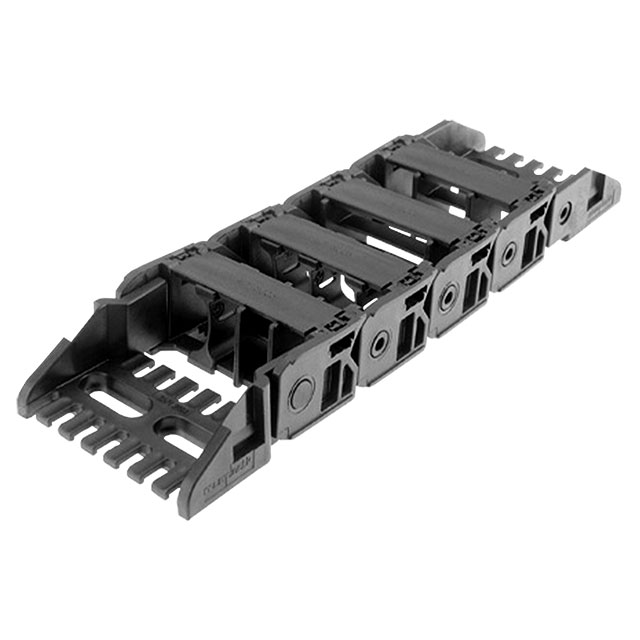

MP3000 CABLE CARRIER 26HX56WX990

Search across all available documentation for this part.

Active

Murrplastik Systems, Inc.

MP3000 CABLE CARRIER 26HX56WX990

Technical Specifications

Parameters and characteristics for this part

MP3000 CABLE CARRIER 26HX56WX990

Part	Frame Type	Length	Length	Outer Height	Outer Height	Material	Link Pitch	Link Pitch	Minimum Bend Radius [radius]	Minimum Bend Radius [radius]	Cavity Height [z]	Cavity Height [z]	Loading Side	Outer Width [x]	Outer Width [x]	Cavity Width [x]	Cavity Width [x]	Operating Temperature [Min]	Operating Temperature [Max]
Murrplastik Systems, Inc. 0300-02-056-095-0-0-990	Open	990 mm	38.976 in	1.378 in	35 mm	Polyamide (PA)	45 mm	1.772 in	95 mm	3.74 in	1.024 in	26 mm	Inside Bend	74 mm	2.913 in	2.205 "	56 mm	-30 ░C	120 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 90.84

General part information

MP3000 CABLE CARRIER 26HX56WX990

Technical documentation and resources

No documents available
