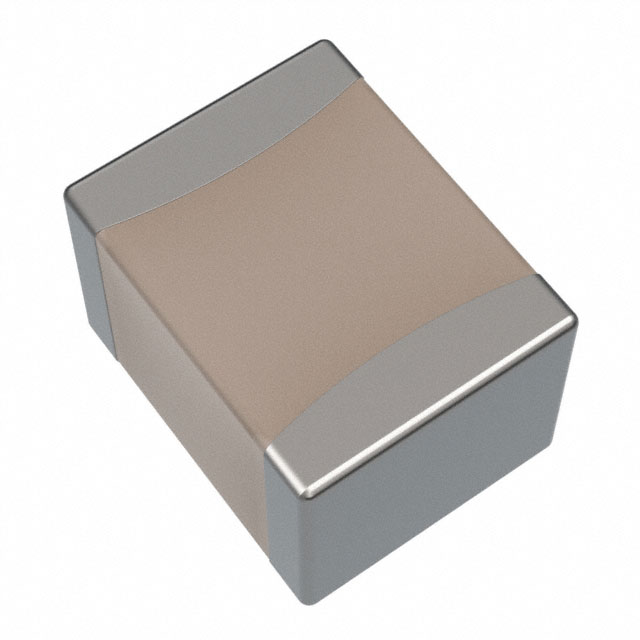

EMF325B7224KNHT

Active

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 0.22 ΜF, 16 V, 1210 [3225 METRIC], ± 10%, X7R, M SERIES

Search across all available documentation for this part.

Active

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 0.22 ΜF, 16 V, 1210 [3225 METRIC], ± 10%, X7R, M SERIES

Technical Specifications

Parameters and characteristics for this part

SMD MULTILAYER CERAMIC CAPACITOR, 0.22 ΜF, 16 V, 1210 [3225 METRIC], ± 10%, X7R, M SERIES

Part	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max) [Max]	Temperature Coefficient	Applications	Voltage - Rated [custom]	Package / Case	Package / Case	Ratings	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]
TAIYO YUDEN EMF325B7224KNHT	10 %	MLCC, Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	0.083 in	2.1 mm	X7R	Automotive, SMPS Filtering	16 V	1210	3225 Metric	AEC-Q200	0.22 µF	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.22 µF ±10% 16V Ceramic Capacitor X7R 1210 (3225 Metric)

Technical documentation and resources
