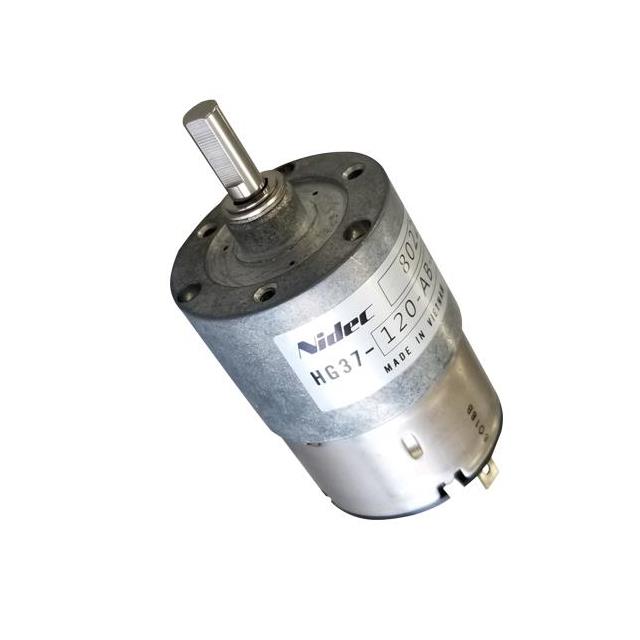

HG37-150-AA-00
ActiveNidec Components Corporation
12V DC PLANETARY GEAR MOTOR, 27
HG37-150-AA-00
ActiveNidec Components Corporation
12V DC PLANETARY GEAR MOTOR, 27
Description
General part information
HG37-150-AA-00
DC Motor Gearmotor 27 RPM 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | HG37-150-AA-00 |
|---|---|
| Diameter - Shaft | 0.236 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 150 |
| Length - Shaft and Bearing | 0.913 in |
| RPM | 27 RPM |
| Size / Dimension Diameter | 1.457 in |
| Size / Dimension Shape | Round |
| Termination Style | Solder Tab |
| Torque - Max Momentary (mNm) | 588 mNm |
| Torque - Max Momentary (oz-in) | 83.27 oz-in |
| Torque - Rated (mNm) | 490 mNm |
| Torque - Rated (oz-in) | 69.4 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VAC |
