RNX02575M0JKLB
ObsoleteVishay Dale
RES 75M OHM 5% 1/2W AXIAL
RNX02575M0JKLB
ObsoleteVishay Dale
RES 75M OHM 5% 1/2W AXIAL
Description
General part information
RNX02575M0JKLB

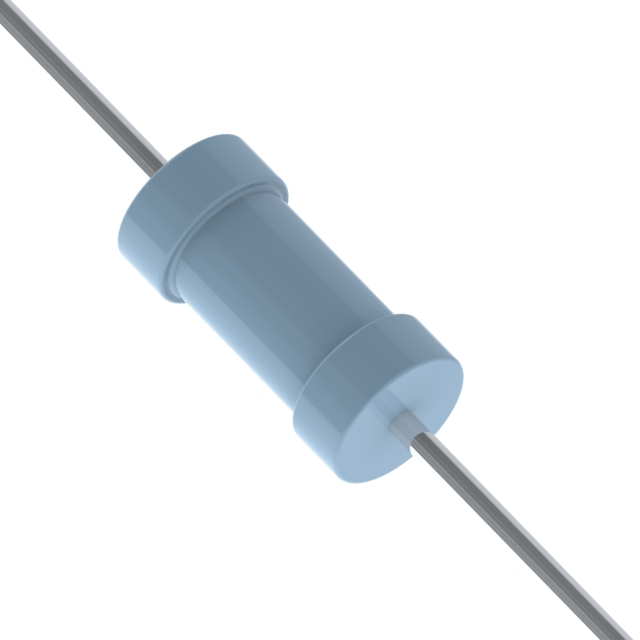

75 MOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNX02575M0JKLB |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Retardant Coating, High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 75 MOhms |
| Size / Dimension Diameter | 0.14 in |
| Size / Dimension Length | 0.29 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
