LZ1-10UB00-01U4
Obsoleteams-OSRAM USA INC.

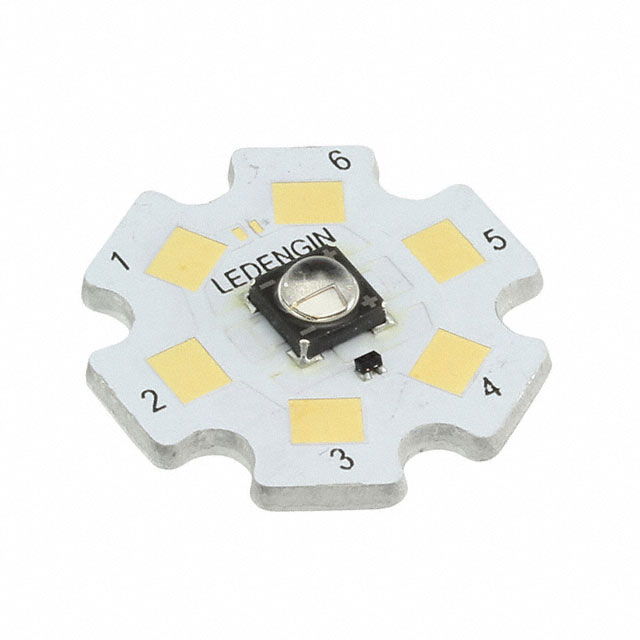

EMITTER UV STAR MCPCB
LZ1-10UB00-01U4
Obsoleteams-OSRAM USA INC.
EMITTER UV STAR MCPCB
Description
General part information
LZ1-10UB00-01U4
Ultraviolet (UV) Emitter 385nm ~ 390nm 3.9V 1A 68° 4-SMD, No Lead Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | LZ1-10UB00-01U4 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature | 130 °C |
| Orientation | Top View |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Type | Ultraviolet (UV) |
| Viewing Angle | 68 ° |
| Voltage - Forward (Vf) (Typ) | 3.9 V |
| Wavelength (Max) | 390 nm |
| Wavelength (Min) | 385 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
