1414PHRI

Active

Hammond Manufacturing

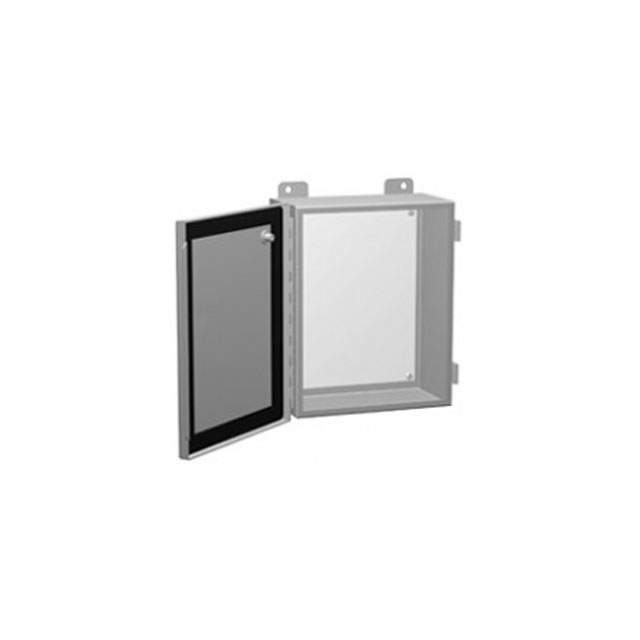

BOX STEEL GRAY 10"L X 8"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnclosure Overview

1414PHRI

Active

Hammond Manufacturing

BOX STEEL GRAY 10"L X 8"W

Deep-Dive with AI

DocumentsEnclosure Overview

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.23

Description

General part information

1414 Series

Box Metal, Steel Gray Hinged Door, Lid 10.000" L x 8.000" W (254.00mm x 203.20mm) X 4.000" (101.60mm)

Documents

Technical documentation and resources

Enclosure Overview

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1414PHRI	1414 Series

Area (L x W)	80 in²	48 - 224 in˛
Area (L x W)	516 cm²	232 - 1445 cm˛
Area (L x W)	-	36 in²
Area (L x W)	-	155 cm²
Area (L x W)	-	24 in²
Color	Gray	Natural, Gray
Container Type	Box	Box
Design	Hinged Door, Lid	Hinged Door, Lid, Cover Included
Features	Interior Panels	Interior Panels
Height [z]	101.6 mm	88.9 - 254 mm
Height [z]	101.6 mm	3.5 - 101.6 "
Material	Metal, Steel	Metal, Steel, Aluminum
Ratings	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12	UL-508, 4, 12, NEMA 3R, 13, JIC EGP-1-1967, IP66, 4X, NEMA 13, IP54, NEMA 12, NEMA 4
Size / Dimension	-	101.6 mm
Size / Dimension	-	254 - 304.8 mm
Size / Dimension [x]	254 mm	152.4 - 406.4 mm
Size / Dimension [x]	10 in	6 - 16 in
Size / Dimension [y]	8 in	4 - 14 "
Size / Dimension [y]	203.2 mm	152.4 - 355.6 mm
Thickness	14 Gauge	0.08 - 14 Gauge
Thickness	-	2.03 mm
Weight	10 lbs	5 - 28 lbs
Weight	4.5 kg	2.3 - 12.7 kg

1414 Series

BOX S STL NATURAL 14"L X 12"W

Part	Area (L x W)	Area (L x W)	Features	Weight	Weight	Design	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Ratings	Container Type	Thickness	Material
Hammond Manufacturing 1414N4PHSSM8	168 in˛	1084 cm˛	Interior Panels	22 lbs	10 kg	Hinged Door, Lid	Natural	355.6 mm	12 "	304.8 mm	14 in	8 "	203.2 mm	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	Box	14 Gauge
Hammond Manufacturing 1414N4PHS16O6	224 in²	1445 cm²	Interior Panels	26 lbs	11.8 kg	Hinged Door, Lid	Natural	406.4 mm	14 in	355.6 mm	16 in	6 in	152.4 mm	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	Box	14 Gauge
Hammond Manufacturing 1414PHJ6	100 in²	645 cm²	Interior Panels	14 lb	6.4 kg	Hinged Door, Lid	Gray	254 mm	10 in	254 mm	10 in	6 in	152.4 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414PHO10	224 in²	1445 cm²	Interior Panels	26 lbs	11.8 kg	Hinged Door, Lid	Gray	406.4 mm	14 in	355.6 mm	16 in	10 in	254 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414N4PHS16G	48 in²	310 cm²	Interior Panels	6 lbs	2.7 kg	Hinged Door, Lid	Natural					3.5 in	88.9 mm	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	Box	14 Gauge
Hammond Manufacturing 1414PHRO6	224 in²	1445 cm²	Interior Panels	23 lbs	10.4 kg	Hinged Door, Lid	Gray	406.4 mm	14 in	355.6 mm	16 in	6 in	152.4 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414N4PHO10	224 in²	1445 cm²	Interior Panels	28 lbs	12.7 kg	Hinged Door, Lid	Gray	406.4 mm	14 in	355.6 mm	16 in	10 in	254 mm	IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414SCI	80 in²	516 cm²	Interior Panels	10 lbs	4.5 kg	Cover Included	Gray	254 mm	8 in	203.2 mm	10 in	101.6 mm	101.6 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414N4PHILP	80 in²	516 cm²		9 lbs	4.1 kg	Hinged Door, Lid	Gray	254 mm	8 in	203.2 mm	10 in	101.6 mm	101.6 mm	IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, UL-508	Box	14 Gauge	Metal, Steel
Hammond Manufacturing 1414PHG	48 in²	310 cm²	Interior Panels	6 lbs	2.7 kg	Hinged Door, Lid	Gray					3.5 in	88.9 mm	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Box	14 Gauge	Metal, Steel
