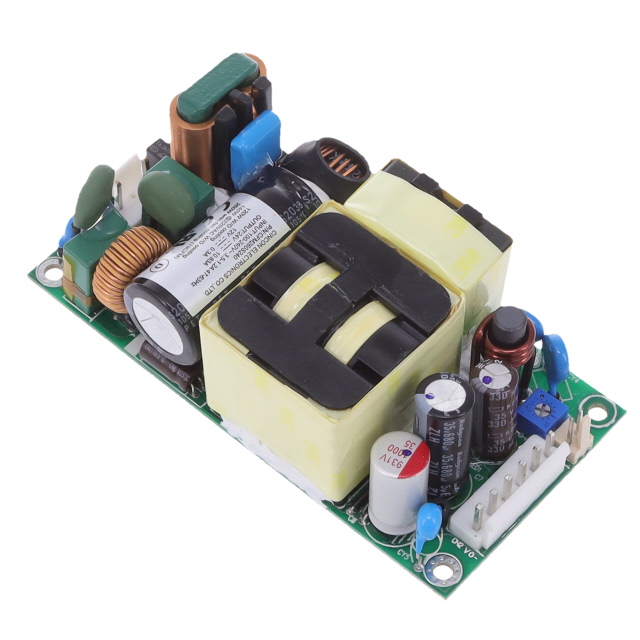

CFM260S240
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 24V 260W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFM260S240
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 24V 260W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM260S240 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Current - Output 1 | 10.83 A |
| Efficiency | 93 % |
| Features | PFC, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 260 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.32 in |
| Size / Dimension [z] | 33.6 mm |
| Standard Number | 60335-1, 62368-1 |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 70.64 | |
| 5 | $ 66.55 | |||
| 10 | $ 64.86 | |||
| 25 | $ 62.70 | |||
| 50 | $ 61.11 | |||
| 100 | $ 59.56 | |||
Description
General part information
CFM260S240
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
