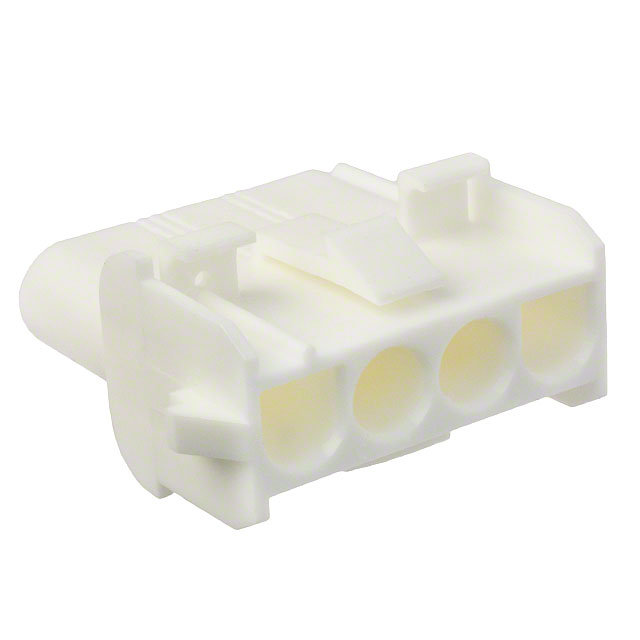

Specification	0050842042

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C

005084 Series

Part	Note	Contact Type	Connector Type	Mounting Type	Insulation Material	Row Spacing	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Contact Termination	Color	Number of Positions
Molex 0050841155	Contacts Not Included	Female Male Male or Female	Plug	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	0.25 in	3	-55 °C	105 °C	Latch Lock	Crimp	Natural	15
Molex 0050841040	Contacts Not Included	Female Male Male or Female	Plug	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)		1	-55 °C	105 °C	Latch Lock	Crimp	Natural	4
Molex 0050842040	Contacts Not Included	Female Male Male or Female	Receptacle	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)		1	-55 °C	105 °C	Locking Ramp	Crimp	Natural	4
Molex 0050842032	Contacts Not Included	Female Male Male or Female	Receptacle	Panel Mount	Nylon 6/6 Polyamide (PA66)		1	-55 °C	105 °C	Locking Ramp	Crimp	Natural	3
Molex 0050842022	Contacts Not Included	Female Male Male or Female	Receptacle	Panel Mount	Nylon 6/6 Polyamide (PA66)		1	-55 °C	105 °C	Locking Ramp	Crimp	Natural	2
Molex 0050842020	Contacts Not Included	Female Male Male or Female	Receptacle	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)		1	-55 °C	105 °C	Locking Ramp	Crimp	Natural	2
Molex 0050842060	Contacts Not Included	Female Male Male or Female	Receptacle	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	0.25 in	2	-55 °C	105 °C	Locking Ramp	Crimp	Natural	6
Molex 0050842150	Contacts Not Included	Female Male Male or Female	Receptacle	Panel Mount	Nylon 6/6 Polyamide (PA66)	0.25 in	3	-55 °C	105 °C	Locking Ramp	Crimp	Natural	15
Molex 0050841020	Contacts Not Included	Female Male Male or Female	Plug	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)		1	-55 °C	105 °C	Latch Lock	Crimp	Natural	2
Molex 0050841095	Contacts Not Included	Female Male Male or Female	Plug	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	0.25 in	3	-55 °C	105 °C	Latch Lock	Crimp	Natural	9
