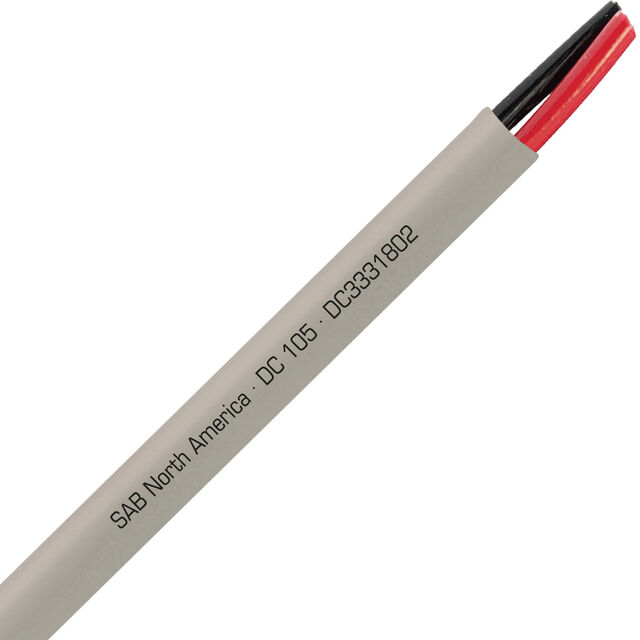

DC3331802
ActiveSAB North America
CABLE 2COND 18 AWG GRAY 1=1FT
DC3331802
ActiveSAB North America
CABLE 2COND 18 AWG GRAY 1=1FT
Description
General part information
DC3331802
2 Conductor Multi-Conductor Cable Gray 18 AWG Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | DC3331802 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 19 |
| Conductor Strand Gauge | 30 AWG |
| Features | Oil Resistant, Flame Retardant |
| Jacket (Insulation) Diameter | 0.276 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray, Tan |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Ratings | CMG, UL, Style |
| Usage | Industrial, Signal, Control |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
