1457K1201EBK
ActiveHammond Manufacturing

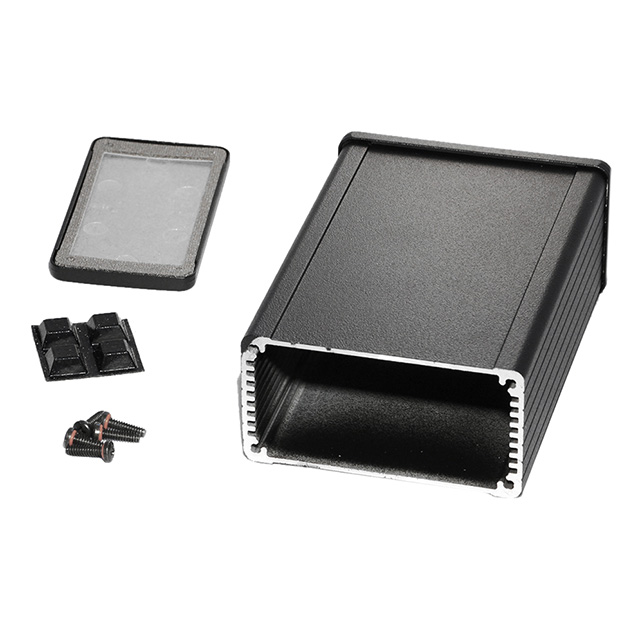

BOX ALUM BLACK 5.12"L X 3.43"W
Deep-Dive with AI
Search across all available documentation for this part.
Documents1457J1201 Drawing
1457K1201EBK
ActiveHammond Manufacturing
BOX ALUM BLACK 5.12"L X 3.43"W
Deep-Dive with AI
Documents1457J1201 Drawing
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1457K1201EBK | 1457 Series |
|---|---|---|
| Area (L x W) | 17.5 in˛ | 8.5 - 29 in˛ |
| Area (L x W) | 113 cm˛ | 54.8 - 187 cm˛ |
| Area (L x W) | - | 139 cm² |
| Area (L x W) | - | 21.5 in² |
| Area (L x W) | - | 22.8 in² |
| Area (L x W) | - | 147 cm² |
| Color | Black | Black, Natural |
| Container Type | Box | Box |
| Design | End Panel(s) | End Panel(s) |
| Drive Type | - | Phillips |
| Features | Card Guides, EMI Shielded, Watertight | Gasket, IP65, Watertight, Mounting Flange, Card Guides, EMI Shielded, IP54, EMI Gasket, Self Sealing, Self Tapping |
| For Use With/Related Products | - | 1457 Series |
| Height | - | 1.26 in |
| Height | - | 32 mm |
| Height [z] | 1.855 in | 1.237 - 2.308 in |
| Height [z] | 47.12 mm | 31.43 - 58.62 mm |
| Material | Aluminum | Aluminum |
| Plating | - | Black Oxide |
| Ratings | IP54 | IP65, IP54 |
| Screw Head Type | - | Pan Head |
| Size / Dimension | - | 4.252 in |
| Size / Dimension | - | 2.308 in |
| Size / Dimension | - | 86.96 mm |
| Size / Dimension | - | 130.75 mm |
| Size / Dimension [x] | 130 mm | 5.148 - 173 mm |
| Size / Dimension [x] | 5.118 in | 2.441 - 6.811 in |
| Size / Dimension [y] | 87 mm | 3.424 - 108 mm |
| Size / Dimension [y] | 3.425 in | 1.336 - 4.252 in |
| Thickness | 1.52 mm | 1.52 mm |
| Thickness | 0.06 in | 0.06 in |
| Thread Size | - | #6-32 |
| Type | - | Panel, End, Machine Screw |
| Weight | 0.5 lbs | 0.24 - 0.85 lb |
| Weight | 226.8 g | 108.86 - 385.55 g |
1457 Series
FLANGED WATERTIGHT END PANELS
...
| Part | Color | Type | Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Features | For Use With/Related Products | Container Type | Size / Dimension [y] | Size / Dimension [x] | Design | Area (L x W) | Area (L x W) | Thickness | Thickness | Ratings | Height [z] | Height [z] | Weight | Weight | Area (L x W) [custom] | Area (L x W) [custom] | Size / Dimension [y] | Size / Dimension [x] | Area (L x W) [custom] | Area (L x W) [custom] | Thread Size | Drive Type | Screw Head Type | Plating | Height [diameter] | Height [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1457NWPF | Black | Panel, End | Aluminum | 4.252 in | 58.61 mm | 108 mm | 2.308 in | Gasket, IP65 | 1457 Series | |||||||||||||||||||||||||
Hammond Manufacturing 1457N1602BK | Black | Aluminum | 108 mm | 173 mm | Card Guides, Mounting Flange, Watertight | Box | 4.252 in | 6.811 in | End Panel(s) | 29 in˛ | 187 cm˛ | 1.52 mm | 0.06 in | IP65 | 58.62 mm | 2.308 in | ||||||||||||||||||
Hammond Manufacturing 1457N1201E | Natural | Aluminum | 108 mm | 129.01 mm | Card Guides, EMI Shielded, Watertight | Box | 4.252 in | 5.079 in | End Panel(s) | 1.52 mm | 0.06 in | IP54 | 58.62 mm | 2.308 in | 0.7 lb | 317.51 g | 139 cm² | 21.5 in² | ||||||||||||||||
Hammond Manufacturing 1457CWP | Black | Panel, End | Aluminum | 33.93 mm | 62 mm | Gasket, IP65 | 1457 Series | 1.336 in | 2.441 in | |||||||||||||||||||||||||
Hammond Manufacturing 1457K1201 | Natural | Aluminum | 87 mm | 130 mm | Card Guides, Watertight | Box | 3.425 in | 5.118 in | End Panel(s) | 17.5 in˛ | 113 cm˛ | 1.52 mm | 0.06 in | IP65 | 47.12 mm | 1.855 in | ||||||||||||||||||
Hammond Manufacturing 1457J1202EBK | Black | Aluminum | 3.424 in | 5.148 in | Card Guides, EMI Shielded, Mounting Flange, Watertight | Box | End Panel(s) | 17.6 in² | 114 cm² | 1.52 mm | 0.06 in | IP54 | 31.48 mm | 1.239 in | 86.96 mm | 130.75 mm | ||||||||||||||||||
Hammond Manufacturing 1457J1602BK | Black | Aluminum | 86.96 mm | 170.75 mm | Card Guides, Mounting Flange, Watertight | Box | 3.424 in | 6.722 " | End Panel(s) | 23 in² | 148 cm² | 1.52 mm | 0.06 in | IP65 | 31.48 mm | 1.239 in | ||||||||||||||||||
Hammond Manufacturing 1457J1202 | Natural | Aluminum | 3.424 in | 5.148 in | Card Guides, Mounting Flange, Watertight | Box | End Panel(s) | 17.6 in² | 114 cm² | 1.52 mm | 0.06 in | IP65 | 31.48 mm | 1.239 in | 86.96 mm | 130.75 mm | ||||||||||||||||||
Hammond Manufacturing 1457J1201EBK | Black | Aluminum | 86.96 mm | 131.15 mm | Card Guides, EMI Shielded, Watertight | Box | 3.424 in | 5.163 " | End Panel(s) | 17.6 in² | 114 cm² | 1.52 mm | 0.06 in | IP54 | 31.43 mm | 1.237 in | ||||||||||||||||||
Hammond Manufacturing 1457J1601EBK | Black | Aluminum | 86.96 mm | 171.15 mm | Card Guides, EMI Shielded, Watertight | Box | 3.424 in | 6.738 " | End Panel(s) | 23.1 in² | 149 cm² | 1.52 mm | 0.06 in | IP54 | 31.43 mm | 1.237 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 45.09 | |
| 5 | $ 42.27 | |||
| 10 | $ 39.45 | |||
| 25 | $ 38.75 | |||
| 50 | $ 38.04 | |||
| 100 | $ 37.48 | |||
| 250 | $ 36.63 | |||
Description
General part information
1457 Series
Box Aluminum Black End Panel(s) 5.118" L x 3.425" W (130.00mm x 87.00mm) X 1.855" (47.12mm)
Documents
Technical documentation and resources
