8442 06010000

Active

Belden Inc.

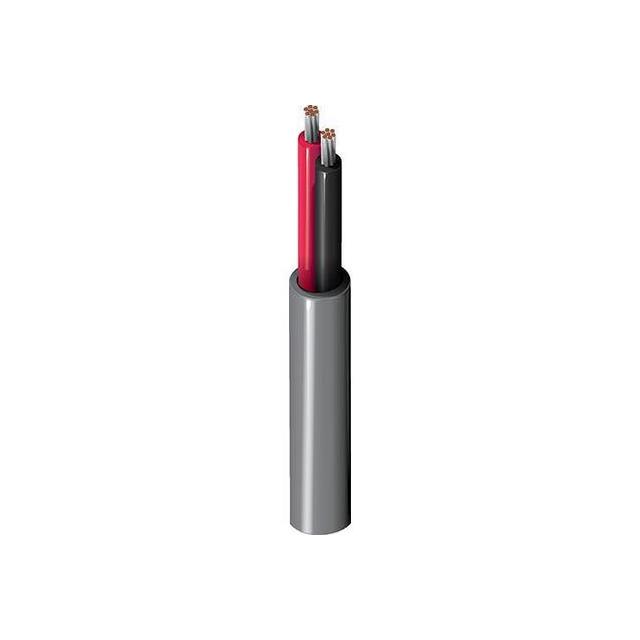

CABLE 2COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8442 06010000

Cable Type	Speaker
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.17 in
Jacket (Insulation) Diameter [diameter]	4.32 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Length	3048 m
Length [x]	10000 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMG
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Usage	Jacket Color	Conductor Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length [x]	Length [x]	Voltage	Length	Length
Belden Inc. 8442 060500	Poly-Vinyl Chloride (PVC)	0.17 in	4.32 mm	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	UL Style CMG	0.025 in	0.635 mm	22 AWG	Audio Control Instrumentation	Chrome	Copper Tinned	2	7	30 AWG	Speaker	500 '	152.4 m	300 V
Belden Inc. 8442 06010000	Poly-Vinyl Chloride (PVC)	0.17 in	4.32 mm	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	UL Style CMG	0.025 in	0.635 mm	22 AWG	Audio Control Instrumentation	Chrome	Copper Tinned	2	7	30 AWG	Speaker	10000 ft		300 V	3048 m
Belden Inc. 8442 060U1000	Poly-Vinyl Chloride (PVC)	0.17 in	4.32 mm	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	UL Style CMG	0.025 in	0.635 mm	22 AWG	Audio Control Instrumentation	Chrome	Copper Tinned	2	7	30 AWG	Speaker			300 V	304.8 m	1000 ft
Belden Inc. 8442 060100	Poly-Vinyl Chloride (PVC)	0.17 in	4.32 mm	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	UL Style CMG	0.025 in	0.635 mm	22 AWG	Audio Control Instrumentation	Chrome	Copper Tinned	2	7	30 AWG	Speaker	100 ft	30.5 m	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 0.73

General part information

2 (1 Pair) Conductor Speaker Cable Chrome 22 AWG 10000' (3048.0m)
