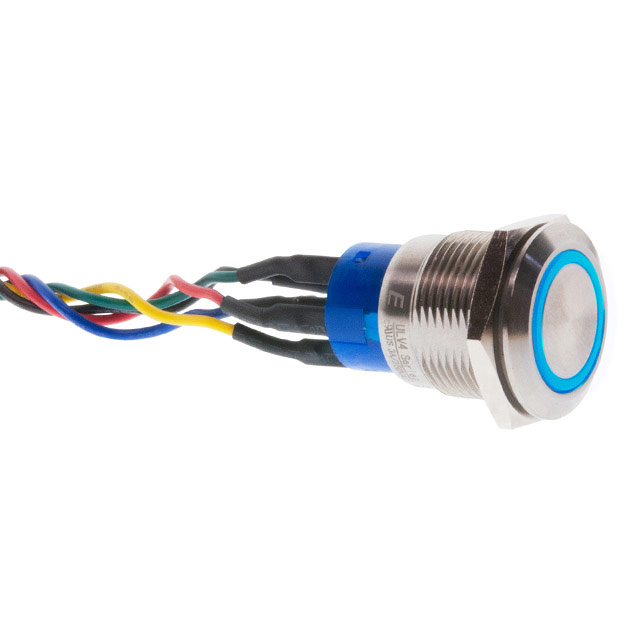

ULV4FWGSS341

Active

E-Switch

SWITCH PB DPDT 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

ULV4FWGSS341

Active

E-Switch

SWITCH PB DPDT 3A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 20.59
		20	$ 19.70
		30	$ 19.19
		50	$ 18.57
		70	$ 18.17
		100	$ 17.76
		250	$ 16.73
		500	$ 16.00

Description

General part information

ULV4 Series

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ULV4FWGSS341	ULV4 Series

Accessory Type	-	Hex Nut
Actuator Marking	No Marking	Power Symbol, No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	DPDT	SPDT, DPDT
Color - Actuator/Cap	Silver	Silver, Black
Current Rating (Amps)	3 A	3 A
Electrical Life	50000 Cycles	50000 Cycles
For Use With/Related Products	-	ULV4 Series
Illumination Type, Color	LED, Blue	LED, Blue, Green, Red, White, Green/Red
Illumination Voltage (Nominal)	3 VDC	3 - 220 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles	500000 - 1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	19.2 mm	19.2 mm
Switch Function	On-On	On-Mom, On-On
Termination Style	Wire Leads	Quick Connect, Solder, Solder Lug, Wire Leads
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V	125 - 250 V

ULV4 Series

SWITCH PUSHBUTTON SPDT 3A 250V

Part	Panel Cutout Dimensions [diameter]	Actuator Marking	Illumination Voltage (Nominal)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Electrical Life	Switch Function	Actuator Type	Type	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Color - Actuator/Cap	Mounting Type	Ingress Protection	Circuit	Mechanical Life
E-Switch ULV4F2BSS544	19.2 mm	Power Symbol	12 VDC	250 V	55 °C	-20 C	Blue, LED	50000 Cycles	On-Mom	Button, Flush, Round	Anti-Vandal, Illuminated	3 A	0.11 in	Quick Connect, Solder	2.8 mm	Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	SPDT	1000000 Cycles
E-Switch ULV4F2GSS531	19.2 mm	No Marking	3 VDC	125 V	55 °C	-20 C	Green, LED	50000 Cycles	On-On	Button, Flush, Round	Anti-Vandal, Illuminated	3 A		Solder Lug		Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	DPDT	500000 Cycles
E-Switch ULV4F2GSS341	19.2 mm	No Marking	3 VDC	250 V	55 °C	-20 C	Blue, LED	50000 Cycles	On-On	Button, Flush, Round	Anti-Vandal, Illuminated	3 A	0.11 in	Quick Connect, Solder	2.8 mm	Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	DPDT	500000 Cycles
E-Switch ULV4F2BSLL34L20	19.2 mm	No Marking	12 VDC	125 V	55 °C	-20 C	Green, LED	50000 Cycles	On-Mom	Button, Flush, Round	Anti-Vandal, Illuminated	3 A		Solder Lug		Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	SPDT	1000000 Cycles
E-Switch ULV4F23SS331	19.2 mm	No Marking	3 VDC	125 V, 250 V	55 °C	-20 C	Green, LED	50000 Cycles	On-On	Button, Flush, Round	Anti-Vandal, Illuminated	3 A	0.11 in	Quick Connect, Solder	2.8 mm	Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	SPDT	500000 Cycles
E-Switch ULV4F2BSS311	19.2 mm	No Marking	3 VDC	250 V	55 °C	-20 C	LED, Red	50000 Cycles	On-Mom	Button, Flush, Round	Anti-Vandal, Illuminated	3 A	0.11 in	Quick Connect, Solder	2.8 mm	Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	SPDT	1000000 Cycles
E-Switch ULV4F23SS341	19.2 mm	No Marking	3 VDC	125 V	55 °C	-20 C	Blue, LED	50000 Cycles	On-On	Button, Flush, Round	Anti-Vandal, Illuminated	3 A	0.11 in	Quick Connect, Solder	2.8 mm	Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	SPDT	500000 Cycles
E-Switch ULV4F2BSLL15L35	19.2 mm	No Marking	24 V	125 V	55 °C	-20 C	LED, Red	50000 Cycles	On-Mom	Button, Flush, Round	Anti-Vandal, Illuminated	3 A		Solder Lug		Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	SPDT	1000000 Cycles
E-Switch ULV4F2HSS341	19.2 mm	No Marking	3 VDC	250 V	55 °C	-20 C	Blue, LED	50000 Cycles	On-Mom	Button, Flush, Round	Anti-Vandal, Illuminated	3 A	0.11 in	Quick Connect, Solder	2.8 mm	Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	DPDT	1000000 Cycles
E-Switch ULV4F2HSLL37L22	19.2 mm	No Marking	220 VAC/DC	125 V	55 °C	-20 C	Green, LED	50000 Cycles	On-Mom	Button, Flush, Round	Anti-Vandal, Illuminated	3 A		Solder Lug		Silver	Panel Mount, Front	IP67 - Dust Tight, Waterproof	DPDT	1000000 Cycles
