EN3L3FX
ActiveSwitchcraft Inc.

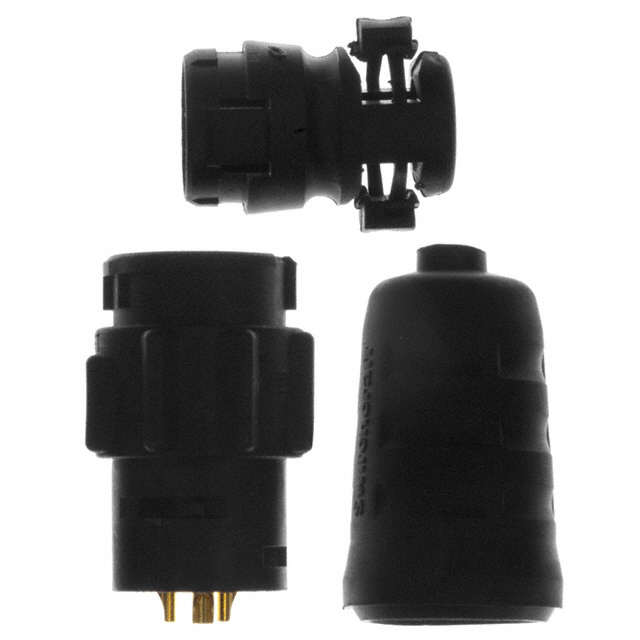

CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3L3FX
ActiveSwitchcraft Inc.
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3L3FX | EN3L3F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.38 in |
| Cable Opening | - | 9.65 mm |
| Cable Opening | - | 0.23 in |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3L3F Series
CONN RCPT FMALE 3P GOLD SLDR CUP
| Part | Current Rating (Amps) | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Fastening Type | Connector Type | Applications | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Mounting Type | Color | Features | Ingress Protection | Backshell Material, Plating | Contact Material | Primary Material | Voltage Rating | Contact Finish - Mating | Material Flammability Rating | Shielding | Termination | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3L3F16LX | 13 A | 5.84 mm | 0.38 in | 9.65 mm | 0.23 in | Bayonet Lock | Receptacle, Female Sockets | General Purpose, Instrumentation, Marine, Medical | Elastomer | 65 °C | -40 °C | Keyed | Free Hanging (In-Line) | Black | Backshell, Cable Clamp | IP66/IP68 | Thermoplastic | Copper Alloy | Plastic | 250 VAC | Gold | UL94 V-0 | Unshielded | |||
Switchcraft Inc. EN3L3FCX | 7.5 A | Bayonet Lock | Receptacle, Female Sockets | General Purpose, Instrumentation, Marine, Medical | Elastomer | 65 °C | -40 °C | Keyed | Free Hanging (In-Line) | Black | Backshell, Cable Clamp | IP66/IP68 | Thermoplastic | Copper Alloy | Plastic | 250 VAC | Gold | UL94 V-0 | Unshielded | Crimp | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | ||||
Switchcraft Inc. EN3L3FX | 7.5 A | Bayonet Lock | Receptacle, Female Sockets | General Purpose, Instrumentation, Marine, Medical | Elastomer | 65 °C | -40 °C | Keyed | Free Hanging (In-Line) | Black | Backshell, Cable Clamp | IP66/IP68 | Thermoplastic | Copper Alloy | Plastic | 250 VAC | Gold | UL94 V-0 | Unshielded | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | |||||
Switchcraft Inc. EN3L3F16X | 13 A | Bayonet Lock | Receptacle, Female Sockets | General Purpose, Instrumentation, Marine, Medical | Elastomer | 65 °C | -40 °C | Keyed | Free Hanging (In-Line) | Black | Backshell, Cable Clamp | IP66/IP68 | Thermoplastic | Copper Alloy | Plastic | 250 VAC | Gold | UL94 V-0 | Unshielded | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in |
