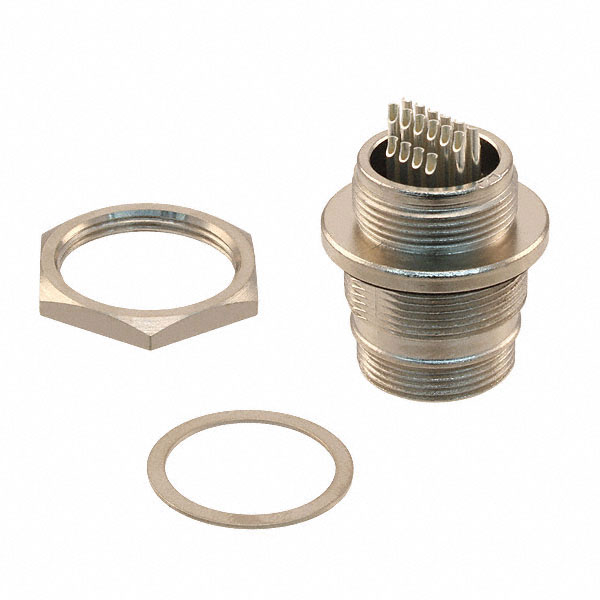

Specification	HR22-12WTRA-20P(73)

Applications	Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 Ąin
Contact Material	Brass
Current Rating	2 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP67
Insert Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	20
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12
Shell Size - Insert	12
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating (AC)	100 VAC
Voltage Rating (DC)	140 VDC

HR22 Series

Part	Insert Material	Fastening Type	Material Flammability Rating	Note	Shielding	Shell Finish	Shell Material	Contact Shape	Connector Type	Mounting Feature	Type	Housing Color	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Mounting Type	Shell Size - Insert	Shell Size - Insert	Contact Type	Features	Number of Positions	Primary Material	Color	Contact Finish - Mating	Contact Material	Backshell Material, Plating	Termination	Current Rating	Voltage Rating (DC)	Voltage Rating (AC)	Applications	Accessory Type	For Use With/Related Products	Contact Termination	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Finish	Contact Size	Termination Finish	Ingress Protection Description	Ingress Protection IP Rating	Material
Hirose Electric Co Ltd HR22-12TJD-20PC(73)	PBT Polybutylene Terephthalate	Threaded	UL94 V-0	Contacts Not Included	Unshielded	Nickel	Zinc Alloy	Circular	Jack Housing	Bulkhead Front Side Nut	For Male Pins	Silver	85 °C	-25 °C	Keyed	Free Hanging (In-Line) Panel Mount	12	12	Crimp	Backshell Cable Clamp Strain Relief	20
Hirose Electric Co Ltd HR22-12TJD-20S
Hirose Electric Co Ltd HR22-12TJD-20S(73)	PBT Polybutylene Terephthalate	Threaded	UL94 V-0		Unshielded	Nickel	Zinc Alloy		Female Sockets Jack	Bulkhead Front Side Nut			85 °C	-25 °C	Keyed	Free Hanging (In-Line) Panel Mount	12	12		Backshell Clamp	20	Metal	Black Silver	Silver	Beryllium Copper	Acrylonitrile Butadiene Rubber (NBR)	Solder Cup	2 A	140 VDC	100 VAC	Industrial
Hirose Electric Co Ltd HR22-12WTR-C2(31)																	12	12		Waterproof												Cap (Cover) Dust	HR22 Series Receptacle
Hirose Electric Co Ltd HR22-SC-221											Signal Stamped								Socket						Phosphor Bronze									Crimp	24 AWG	28 AWG	Gold	1 mm	Phosphor Bronze
Hirose Electric Co Ltd HR22-12WTPA-20P(73)	PBT Polybutylene Terephthalate	Threaded	UL94 V-0		Unshielded	Nickel	Zinc Alloy		Male Pins Plug				85 °C	-25 °C	Keyed	Free Hanging (In-Line)	12	12		Backshell Clamp Coupling Nut	20	Metal	Black Silver	Silver	Brass	Acrylonitrile Butadiene Rubber (NBR)	Solder Cup	2 A	140 VDC	100 VAC	Industrial									Dust Tight Waterproof	IP67 IP68
Hirose Electric Co Ltd HR22-PC-122											Signal Stamped								Pin	Insulation Support					Phosphor Bronze									Crimp	24 AWG	28 AWG	Silver	1 mm	Phosphor Bronze
Hirose Electric Co Ltd HR22-12WTPH-20SC(73)	PBT Polybutylene Terephthalate	Threaded	UL94 V-0	Contacts Not Included	Unshielded	Nickel	Zinc Alloy	Circular	Plug Housing		For Female Sockets	Silver	85 °C	-25 °C	Keyed	Free Hanging (In-Line)	12	12	Crimp		20																			Dust Tight Waterproof	IP67 IP68
Hirose Electric Co Ltd HR22-12WTR-C(31)																	12	12		Metal Chain with Ring Waterproof			Silver									Cap (Cover) Dust	HR22 Series Receptacle									Brass
Hirose Electric Co Ltd HR22-12TJD-20P
