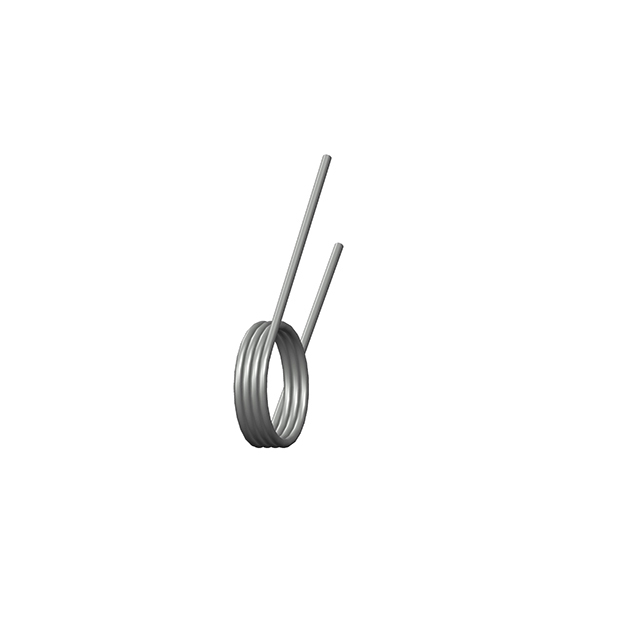

TO-1016CS
ActiveCentury Spring Corp
TOR O=.612, W=.040
TO-1016CS
ActiveCentury Spring Corp
TOR O=.612, W=.040
Description
General part information
TO-1016CS
TOR O=.612, W=.040
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-1016CS |
|---|---|
| Deflection Angle | 132 ° |
| Diameter - Outside | 0.61 in |
| Finish | None |
| Leg Length | 1.1 in |
| Mandrel Diameter | 0.41 in |
| Material | Music Wire |
| Number of Coils | 3.25 |
| Wind Direction | Left |
| Wire Diameter | 0.04 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
