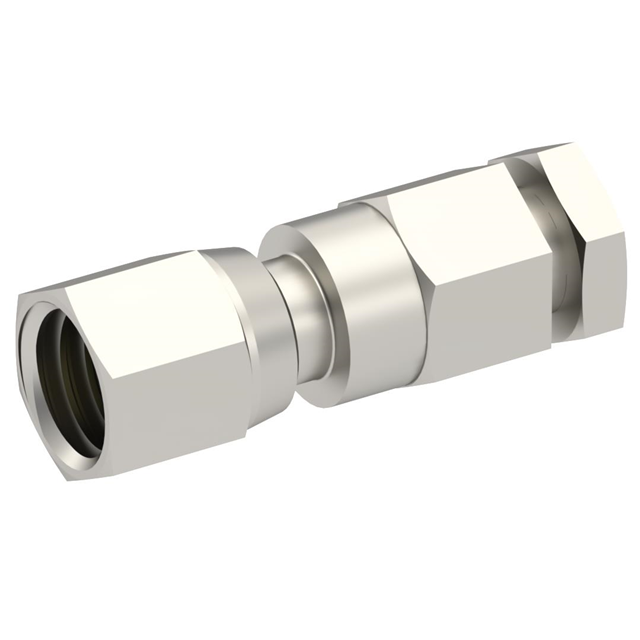

1002-7541-010

Active

Radiall USA, Inc.

SMC F STR NA SDCL .086

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F STR NA SDCL .086

Technical Specifications

Parameters and characteristics for this part

Specification	1002-7541-010

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

SMC F STR NA SDCL .086

Part	Center Contact Material	Connector Style	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Contact Termination	Mounting Type	Shield Termination	Mating Cycles	Insertion Loss	Cable Group	Body Material	Dielectric Material	Frequency - Max [Max]	Center Contact Plating	Body Finish	Connector Type	Housing Color
Radiall USA, Inc. 1002-7541-010	Beryllium Copper	SMC	50 Ohms	-65 ░C	105 ░C	1	Solder	Free Hanging (In-Line)	Clamp	500	0.25 dB	RG-405 (.085" Semi Rigid)	Brass	Polytetrafluoroethylene (PTFE)	10 GHz	Gold	Gold	Female Socket, Plug	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.44

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
