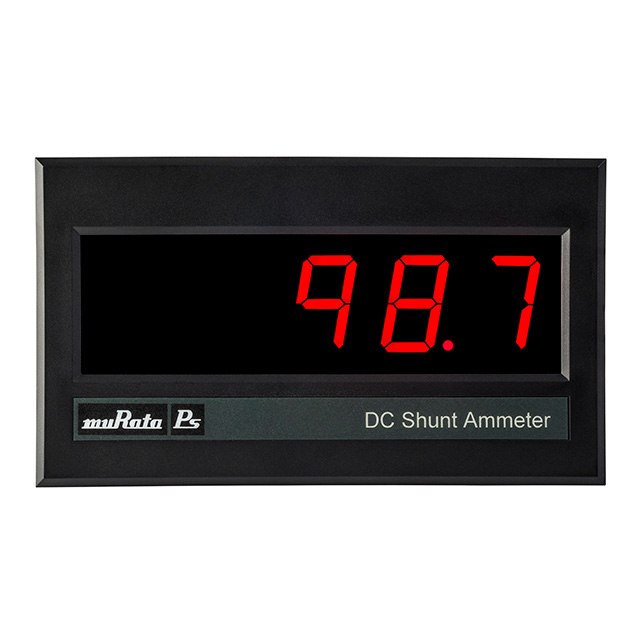

DMS01-AM-RS12-C
ActiveMurata Power Solutions Inc.
DIGITAL AMP METER, 1A/1,200A RAN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMS01-AM-RS12-C
ActiveMurata Power Solutions Inc.
DIGITAL AMP METER, 1A/1,200A RAN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DMS01-AM-RS12-C |
|---|---|
| Display Characters - Height | 1 in |
| Display Characters - Height | 25.4 mm |
| Display Type | LED - Red Characters |
| Measuring Range [Max] | 1200 A |
| Measuring Range [Min] | 1 A |
| Measuring Type | Current |
| Number of Characters Per Row | 4.5 |
| Panel Cutout Dimensions [x] | 139.07 mm |
| Panel Cutout Dimensions [y] | 59.69 mm |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 12 | $ 113.62 | |
DMS01-AM Series
DIGITAL AMP METER, 1A/1,200A RAN
| Part | Number of Characters Per Row | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Measuring Type | Termination Style | Display Type | Measuring Range [Min] | Measuring Range [Max] | Voltage - Supply | Display Characters - Height | Display Characters - Height | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMS01-AM-RS12-C | 4.5 | 139.07 mm | 59.69 mm | Current | Screw Terminal | LED - Red Characters | 1 A | 1200 A | 12 VDC | 1 in | 25.4 mm | Ammeter |
Description
General part information
DMS01-AM Series
Ammeter LED - Red Characters Display Panel Mount
