0820KTP
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
0820KTP
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Description
General part information
0820KTP

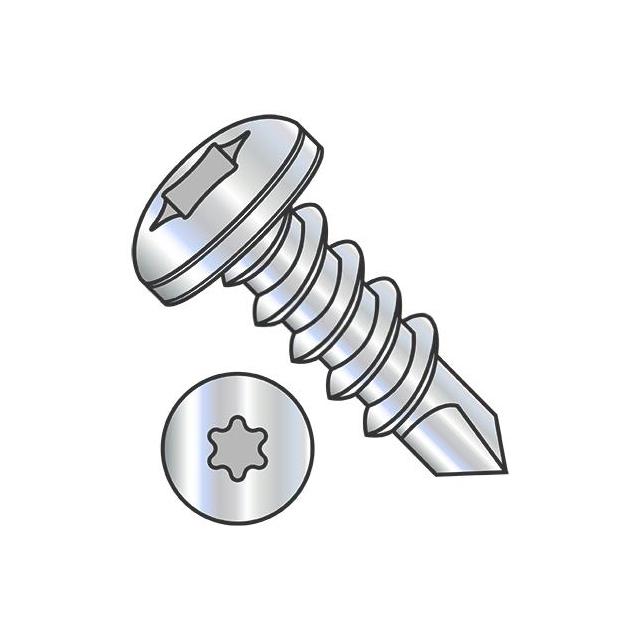

#8-18 Pan Head Self-Drilling Screw 6-Lobe Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0820KTP |
|---|---|
| Drive Type | 6-Lobe |
| Features | Standard |
| Head Diameter | 0.314 in |
| Head Height | 0.11 in |
| Length - Below Head | 1.25 in |
| Length - Overall | 1.36 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 18 mm |
| Thread Size (Min) | 8 mm |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
