AM3D-0505DZ
Unknownaimtec
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM3D-0505DZ
Unknownaimtec
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM3D-0505DZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 300 mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [y] | 7.2 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.12 | |
| 5 | $ 8.01 | |||
| 10 | $ 7.89 | |||
| 20 | $ 7.66 | |||
| 40 | $ 7.43 | |||
| 80 | $ 7.19 | |||
| 160 | $ 6.96 | |||
Description
General part information
AM3D-0505DZ

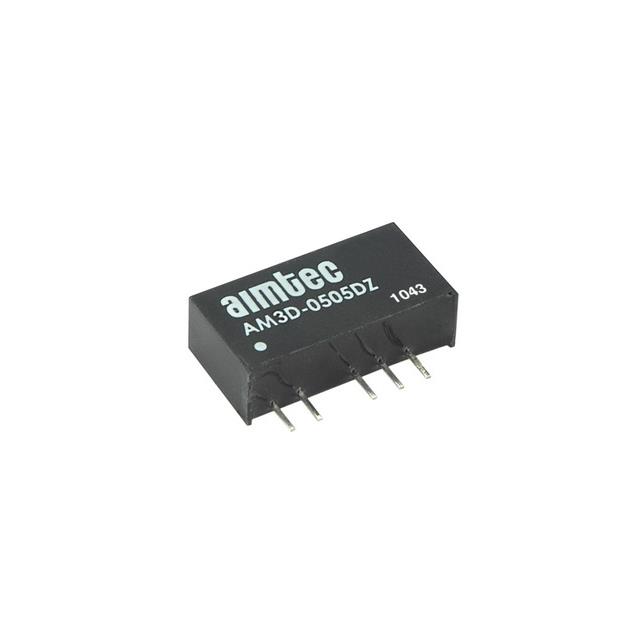

Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 4.5V - 5.5V Input
