926298-3
ActiveTE Connectivity AMP Connectors

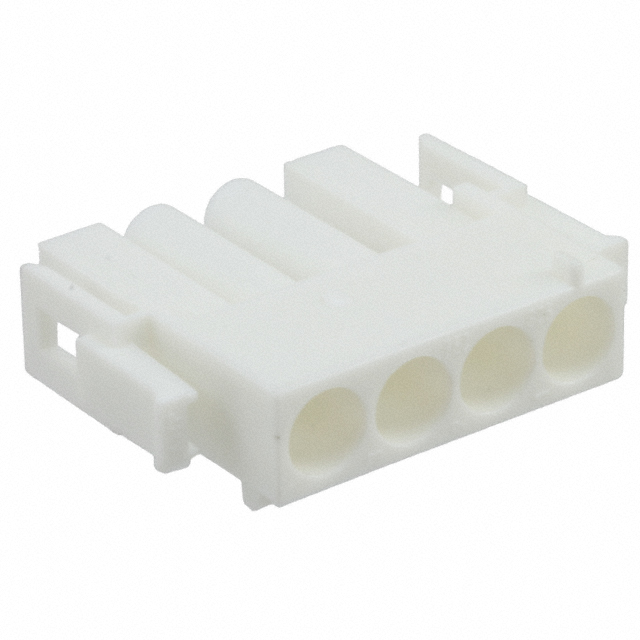

CONN PLUG HSG 4POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
926298-3
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 4POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 926298-3 | 926298 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Female Socket, Male or Female |
| Fastening Type | Latch Lock | Latch Lock |
| Features | - | Flange |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch | - | 0.25 in |
| Pitch | - | 6.35 mm |
926298 Series
CONN PLUG HSG 4POS 6.35MM
| Part | Color | Contact Type | Fastening Type | Note | Connector Type | Contact Termination | Pitch [x] | Pitch [x] | Insulation Material | Number of Rows | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 926298-7 | Natural | Female Socket | Latch Lock | Contacts Not Included | Plug | Crimp | 0.25 in | 6.35 mm | Polyamide (PA66), Nylon 6/6 | 1 | 4 | 105 ░C | -55 °C | Flange | |
TE Connectivity AMP Connectors 926298-3 | Natural | Male or Female | Latch Lock | Contacts Not Included | Plug | Crimp | Polyamide (PA66), Nylon 6/6 | 1 | 4 | 105 ░C | -55 °C | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors 926298-1 | Natural | Female Socket | Latch Lock | Contacts Not Included | Plug | Crimp | 0.25 in | 6.35 mm | Polyamide (PA66), Nylon 6/6 | 1 | 4 | 105 ░C | -55 °C | Flange | |
TE Connectivity AMP Connectors 926298-6 | Natural | Female Socket | Latch Lock | Contacts Not Included | Plug | Crimp | 0.25 in | 6.35 mm | Polyamide (PA66), Nylon 6/6 | 1 | 4 | 105 ░C | -55 °C | Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.70 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.60 | |||
Description
General part information
926298 Series
4 Rectangular Connectors - Housings Plug Natural
