A16L-ARM-24-1
ObsoleteOmron Automation and Safety
SWITCH PUSHBUTTON SPDT 5A 125V
A16L-ARM-24-1
ObsoleteOmron Automation and Safety
SWITCH PUSHBUTTON SPDT 5A 125V
Description
General part information
A16L-ARM-24-1

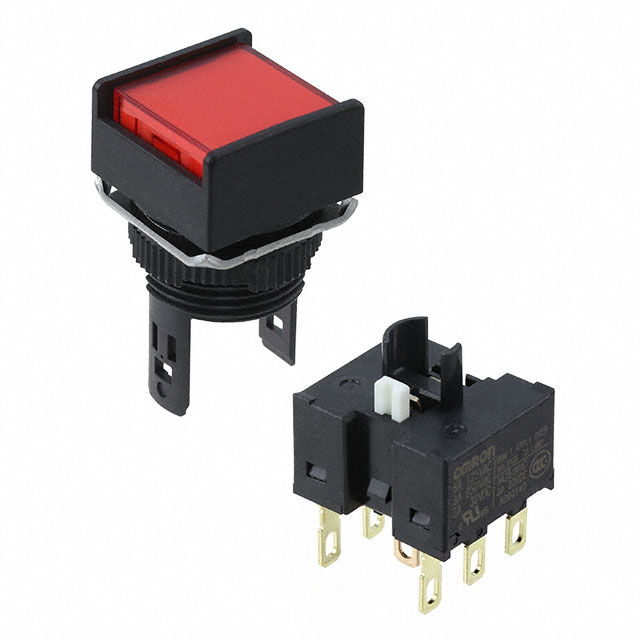

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | A16L-ARM-24-1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button |
| Circuit | SPDT |
| Color | Red |
| Color - Actuator/Cap | Red |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Illumination Type | Incandescent |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 2000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Panel Cutout Diameter | 16 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect, Solder |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 125 V |
