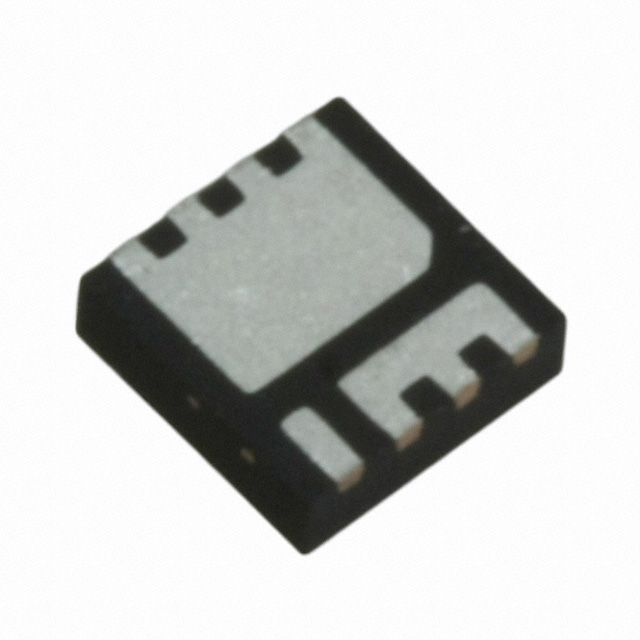

IRFH5053TRPBF
ActivePOWER MOSFET, N CHANNEL, 100 V, 9.3 A, 0.018 OHM, PQFN, SURFACE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
IRFH5053TRPBF
ActivePOWER MOSFET, N CHANNEL, 100 V, 9.3 A, 0.018 OHM, PQFN, SURFACE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IRFH5053TRPBF |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 9.3 A, 46 A |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1510 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerVDFN |
| Power Dissipation (Max) | 3.1 W, 8.3 W |
| Rds On (Max) @ Id, Vgs | 18 mOhm |
| Supplier Device Package | PQFN (5x6) Single Die |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.68 | |
| 10 | $ 1.73 | |||
| 100 | $ 1.19 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.89 | |||
| 2000 | $ 0.82 | |||
| Digi-Reel® | 1 | $ 2.68 | ||
| 10 | $ 1.73 | |||
| 100 | $ 1.19 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.89 | |||
| 2000 | $ 0.82 | |||
| Tape & Reel (TR) | 4000 | $ 0.81 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.89 | |
| 10 | $ 1.93 | |||
| 25 | $ 1.76 | |||
| 50 | $ 1.57 | |||
| 100 | $ 1.39 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.14 | |||
| 1000 | $ 1.00 | |||
Description
General part information
IRFH5053 Series
The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
