Description
General part information

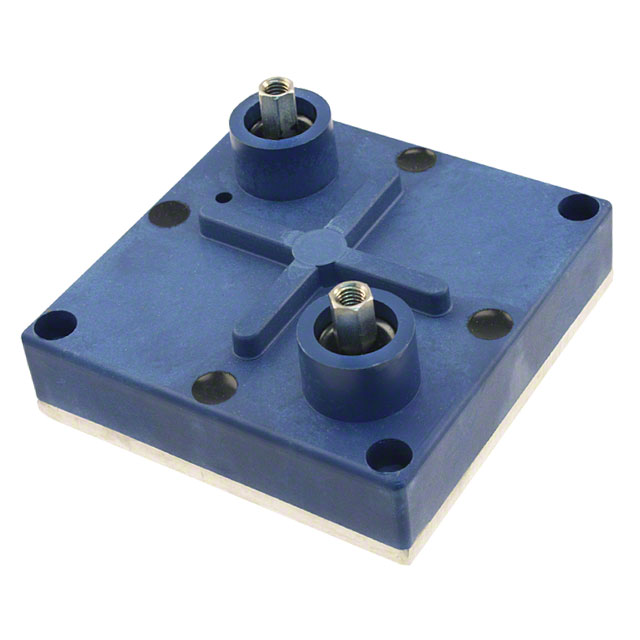

TA2K0PH5R00KE
5 Ohms ±10% 2000W Thick Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | TA2K0PH5R00KE |
|---|---|
| Coating | Epoxy Coated |
| Composition | Thick Film |
| Features | Moisture Resistant |
| Height - Seated (Max) | 1.548 in |
| Housing Type | Epoxy Coated |
| Lead Style | #10-32 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box |
| Power (Watts) | 2 kW |
| Resistance | 5 Ohm |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 3 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Tolerance | 10 % |
