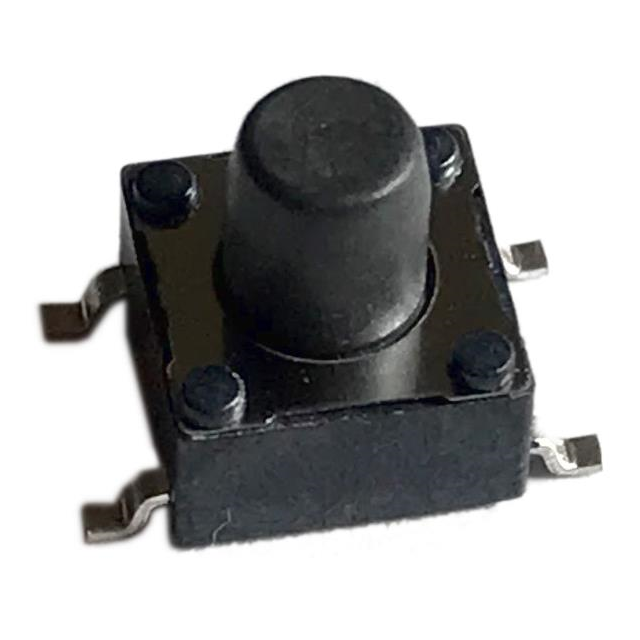

222AMVCAR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10450	$ 0.14

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	222AMVCAR	222AMV Series

Actuator Height off PCB, Vertical	-	5 - 9.5 mm
Actuator Height off PCB, Vertical [z]	7 mm	4.3 - 7 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	200000 - 1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	-	260 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.2 mm	6.2 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Outline [y]	Outline [x]	Actuator Orientation	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mechanical Life	Circuit	Actuator Height off PCB, Vertical	Switch Function	Illumination	Actuator Type	Termination Style	Switch Travel	Contact Rating @ Voltage	Mounting Type	Actuator Height off PCB, Vertical [z]
CTS Electrocomponents 222AMVDBR	6.2 mm	6.2 mm	Top Actuated	260 gf	85 °C	-40 °C	Tactile Feedback	200000 Cycles	SPST-NO	9.5 mm	Off-Mom	Non-Illuminated	Standard	Gull Wing	0.25 mm	0.05 A, 12 VDC	Surface Mount
CTS Electrocomponents 222AMVABR	6.2 mm	6.2 mm	Top Actuated	260 gf	85 °C	-40 °C	Tactile Feedback	200000 Cycles	SPST-NO		Off-Mom	Non-Illuminated	Standard	Gull Wing	0.25 mm	0.05 A, 12 VDC	Surface Mount	4.3 mm
CTS Electrocomponents 222AMVBBR	6.2 mm	6.2 mm	Top Actuated	260 gf	85 °C	-40 °C	Tactile Feedback	200000 Cycles	SPST-NO	5 mm	Off-Mom	Non-Illuminated	Standard	Gull Wing	0.25 mm	0.05 A, 12 VDC	Surface Mount
CTS Electrocomponents 222AMVAAR	6.2 mm	6.2 mm	Top Actuated		85 °C	-40 °C	Tactile Feedback	1000000 Cycles	SPST-NO		Off-Mom	Non-Illuminated	Standard	Gull Wing	0.25 mm	0.05 A, 12 VDC	Surface Mount	4.3 mm
CTS Electrocomponents 222AMVCAR	6.2 mm	6.2 mm	Top Actuated		85 °C	-40 °C	Tactile Feedback	1000000 Cycles	SPST-NO		Off-Mom	Non-Illuminated	Standard	Gull Wing	0.25 mm	0.05 A, 12 VDC	Surface Mount	7 mm
