SW121308-3
ActiveDB Unlimited

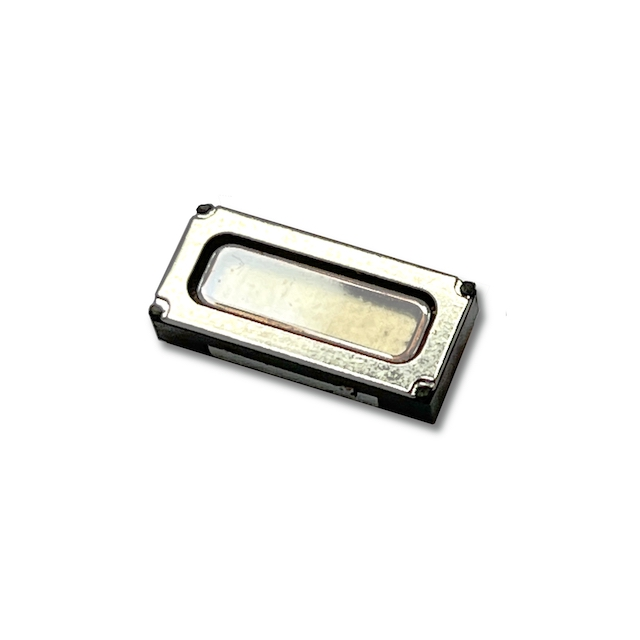

SPEAKER 8OHM 300MW TOP PORT 88DB
SW121308-3
ActiveDB Unlimited
SPEAKER 8OHM 300MW TOP PORT 88DB
Description
General part information
SW121308-3
8 Ohms General Purpose Speaker 300 mW 1.3 kHz ~ 5 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | SW121308-3 |
|---|---|
| Efficiency - dBA | 88 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 300 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1300 Hz |
| Frequency Range (Max) | 5 kHz |
| Frequency Range (Min) | 1.3 kHz |
| Height - Seated (Max) | 0.118 in |
| Impedance | 8 Ohm |
| Ingress Protection | Waterproof |
| Material - Cone | Polyetheretherketone (PEEK) |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 0.5 W |
| Power - Rated | 300 mW |
| Shape | Rectangular |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.217 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
