Description
General part information

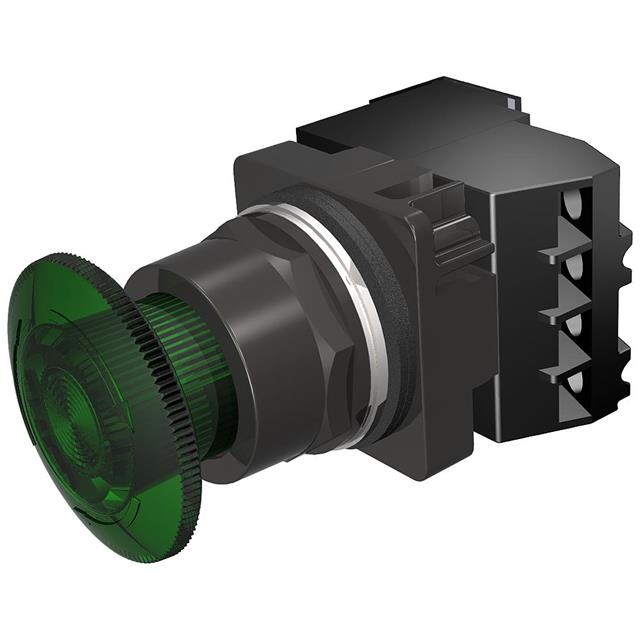

52BR8HSA
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 52BR8HSA |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NO/NC |
| Color | Clear |
| Color - Actuator/Cap | Green |
| Current Rating | 60 A |
| Illumination Type | Incandescent |
| Illumination Voltage (Nominal) | 240 V |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 110 V |
