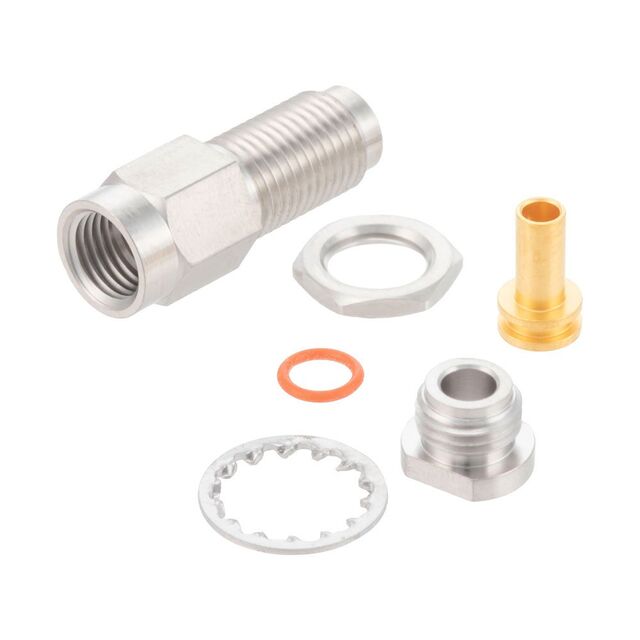

FMCN1825
ActiveFairview Microwave
CONN JACK CLAMP/SOLDER 1.85MM
FMCN1825
ActiveFairview Microwave
CONN JACK CLAMP/SOLDER 1.85MM
Description
General part information
FMCN1825
1.85mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1825 |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | RG-405 |
| Cable Group Diameter (Semi Rigid) | 0.086 in |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 1.85 mm |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 60 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Clamp |
