FM51MP1010
ActiveFairview Microwave

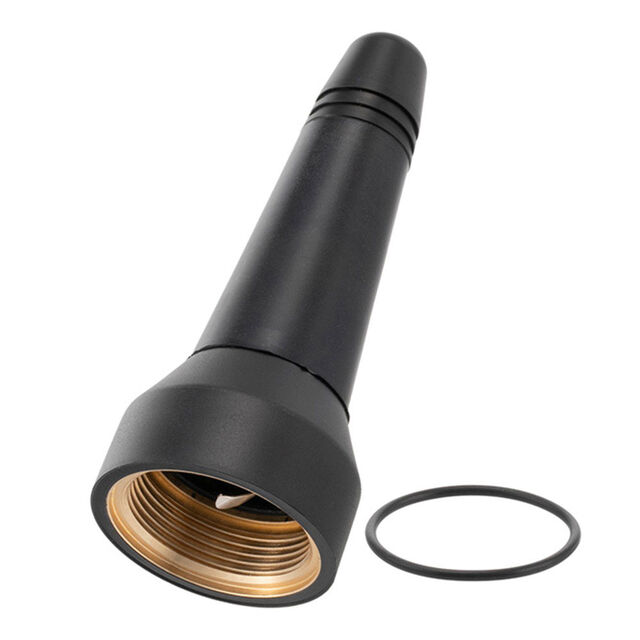

ANTENNA NMO MOUNT698 MHZ-2.7 GHZ
FM51MP1010
ActiveFairview Microwave
ANTENNA NMO MOUNT698 MHZ-2.7 GHZ
Description
General part information
FM51MP1010
RF ANTENNA General Purpose Module NMO Base Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FM51MP1010 |
|---|---|
| Antenna Type | Module |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 1.699 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 2.7 GHz |
| Frequency Range (Min) | 698 MHz |
| Gain | 5 dBi |
| Height (Max) | 3.6 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | General ISM |
| Termination | NMO |
| VSWR | 2 |
