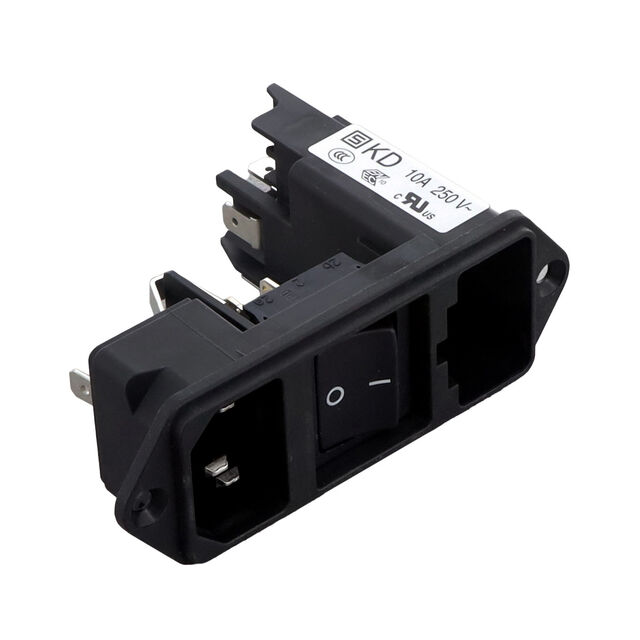

KD13.4101.151
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KD13.4101.151
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KD13.4101.151 | KD13.4101 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Voltage Selector | Voltage Selector |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange, Snap-In |
| Panel Cutout Dimensions [x] | 27.5 mm | 27.5 mm |
| Panel Cutout Dimensions [y] | 66.5 mm | 66.5 mm |
| Panel Thickness | - | 0.059 in |
| Panel Thickness | - | 1.5 mm |
| Panel Thickness | - | 2 mm |
| Panel Thickness | - | 0.079 in |
| Panel Thickness | - | 2.5 mm |
| Panel Thickness | - | 0.098 in |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.189 ", 4.8 mm | 0.189 - 4.8 " |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KD13.4101 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Approval Agency | Fuse Holder, Drawer | Features | Accomodates a Fuse | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Material Flammability Rating | Connector Type | Filter Type | Mounting Type | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Termination | Termination | Connector Style | Ingress Protection | Switch Features | Panel Thickness [custom] | Panel Thickness [custom] | Panel Thickness | Panel Thickness | Panel Thickness [x] | Panel Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KD13.4101.151 | CCC, CSA, ENEC, UL | Drawer Sold Separate | Voltage Selector | 27.5 mm | 66.5 mm | UL94 V-0 | Receptacle, Male Blades - Module | Unfiltered - Commercial | Flange, Panel Mount | 10 A | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IEC 320-C14 | IP40 | Switch On-Off | |||||||
SCHURTER Inc. KD13.4101.105 | CCC, CSA, ENEC, UL | Drawer Sold Separate | Voltage Selector | 27.5 mm | 66.5 mm | UL94 V-0 | Receptacle, Male Blades - Module | Unfiltered - Commercial | Panel Mount, Snap-In | 10 A | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IEC 320-C14 | IP40 | Switch On-Off | 0.059 in | 1.5 mm | |||||
SCHURTER Inc. KD13.4101.107 | CCC, CSA, ENEC, UL | Drawer Sold Separate | Voltage Selector | 27.5 mm | 66.5 mm | UL94 V-0 | Receptacle, Male Blades - Module | Unfiltered - Commercial | Panel Mount, Snap-In | 10 A | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IEC 320-C14 | IP40 | Switch On-Off | 2 mm | 0.079 in | |||||
SCHURTER Inc. KD13.4101.109 | CCC, CSA, ENEC, UL | Drawer Sold Separate | Voltage Selector | 27.5 mm | 66.5 mm | UL94 V-0 | Receptacle, Male Blades - Module | Unfiltered - Commercial | Panel Mount, Snap-In | 10 A | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IEC 320-C14 | IP40 | Switch On-Off | 2.5 mm | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.53 | |
| 20 | $ 23.83 | |||
| 40 | $ 22.69 | |||
| 50 | $ 21.51 | |||
| 60 | $ 22.05 | |||
| 100 | $ 18.20 | |||
| 260 | $ 19.89 | |||
| 500 | $ 19.11 | |||
Description
General part information
KD13.4101 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
