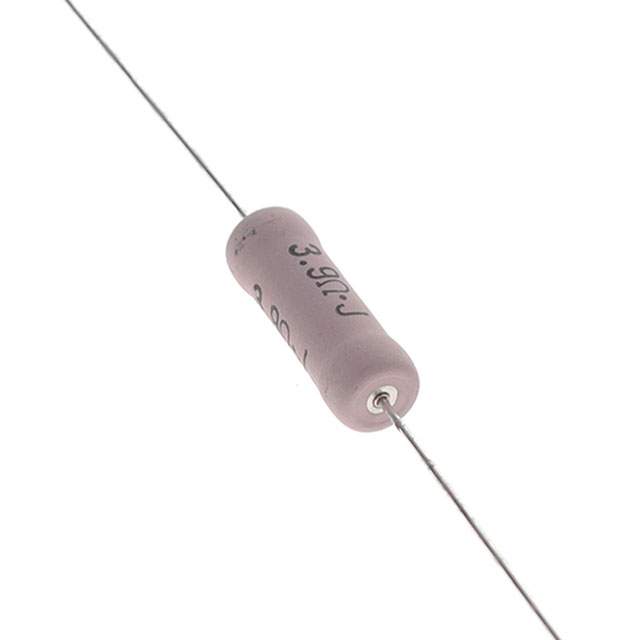

MOSX5C3R9J

Active

KOA Speer Electronics, Inc.

RES 3.9 OHM 5% 5W AXIAL

Search across all available documentation for this part.

Active

KOA Speer Electronics, Inc.

RES 3.9 OHM 5% 5W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MOSX5C3R9J

Composition	Metal Oxide Film
Features	Safety, Flame Retardant Coating
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	5 W
Resistance	3.9 Ohms
Size / Dimension [diameter]	0.354 in
Size / Dimension [diameter]	9 mm
Size / Dimension [z]	0.965 in
Size / Dimension [z]	24.5 mm
Supplier Device Package	Axial
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Power (Watts)	Tolerance	Resistance	Temperature Coefficient	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Number of Terminations	Supplier Device Package	Package / Case
KOA Speer Electronics, Inc. MOSX5CR22J	Flame Retardant Coating Safety	-55 °C	200 °C	Metal Oxide Film	5 W	5 %	220 mOhms	300 ppm/°C	0.354 in	9 mm	0.965 in	24.5 mm	2	Axial	Axial
KOA Speer Electronics, Inc. MOSX5C3R3J	Flame Retardant Coating Safety	-55 °C	200 °C	Metal Oxide Film	5 W	5 %	3.3 Ohms	300 ppm/°C	0.354 in	9 mm	0.965 in	24.5 mm	2	Axial	Axial
KOA Speer Electronics, Inc. MOSX5C1R0G	Flame Retardant Coating Safety	-55 °C	200 °C	Metal Oxide Film	5 W	2 %	1 Ohms	300 ppm/°C	0.354 in	9 mm	0.965 in	24.5 mm	2	Axial	Axial
KOA Speer Electronics, Inc. MOSX5C3R9J	Flame Retardant Coating Safety	-55 °C	200 °C	Metal Oxide Film	5 W	5 %	3.9 Ohms	300 ppm/°C	0.354 in	9 mm	0.965 in	24.5 mm	2	Axial	Axial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.9 Ohms ±5% 5W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film
