4282-5SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT FMALE 5P GOLD SLDR CUP

Part	Orientation	Connector Type	Color	Mounting Feature	Primary Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shielding	Ingress Protection	Contact Finish - Mating	Fastening Type	Current Rating (Amps)
Conxall/Switchcraft 4282-5SG-300	Keyed	Receptacle, Female Sockets	Black	Bulkhead - Front Side Nut	Plastic	600 V	-40 °C	115 °C	Brass	Unshielded	Weathertight	Gold	Bayonet Lock	5.6 A
Conxall/Switchcraft 4282-5SG-3ES	Keyed	Receptacle, Female Sockets	Black	Bulkhead - Front Side Nut	Plastic	600 V	-40 °C	115 °C	Brass	Unshielded	Weathertight	Gold	Bayonet Lock	5.6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

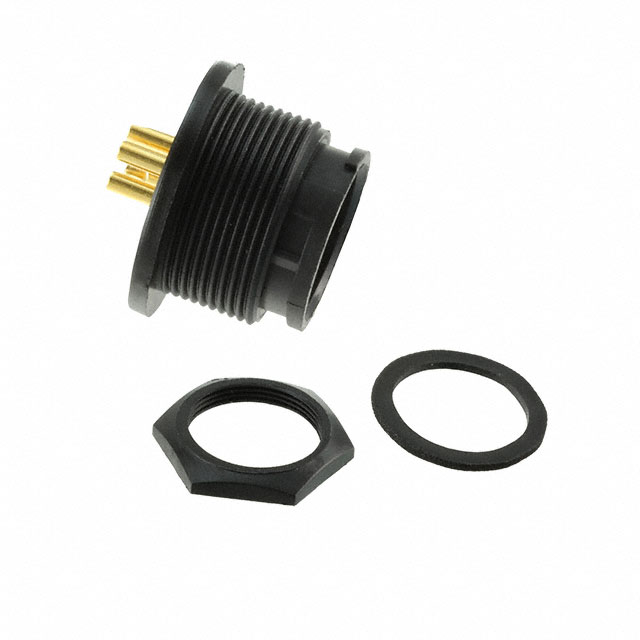

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
