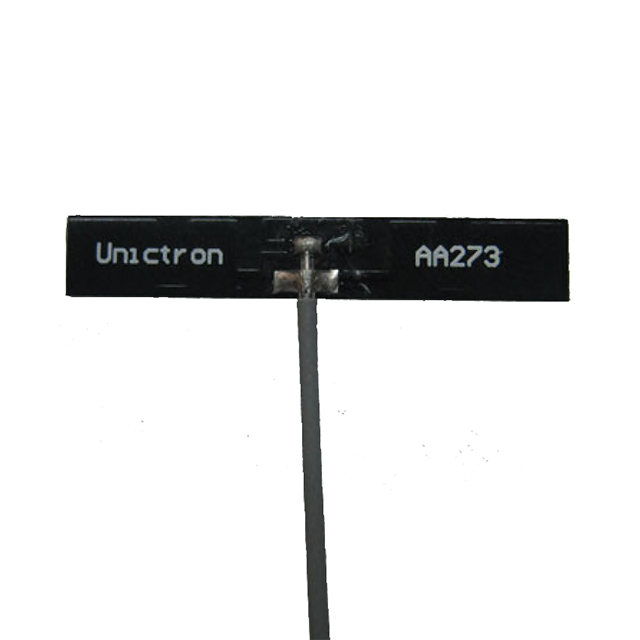

H2B1BC2A1B225L

Active

Unictron Technologies Corporation

WIFI/BT 2400-2500 MHZ PCB ANTENN

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

WIFI/BT 2400-2500 MHZ PCB ANTENN

Technical Specifications

Parameters and characteristics for this part

WIFI/BT 2400-2500 MHZ PCB ANTENN

Part	Antenna Type	Frequency (Center/Band)	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Termination	RF Family/Standard	Features	Features	Number of Bands	VSWR	Applications
Unictron Technologies Corporation H2B1BC2A1B225L	PCB Trace	2.442 GHz	Surface Mount	0.5 mm	0.02 in	I-PEX MHF1, IPEX MHF1, U.FL (UMCC)	WiFi	Cable	100 mm	1	2	802.11b/g/n, Wi-Fi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 802.11b/g/n, Wi-Fi PCB Trace U.FL (UMCC), I-PEX MHF1 Surface Mount
