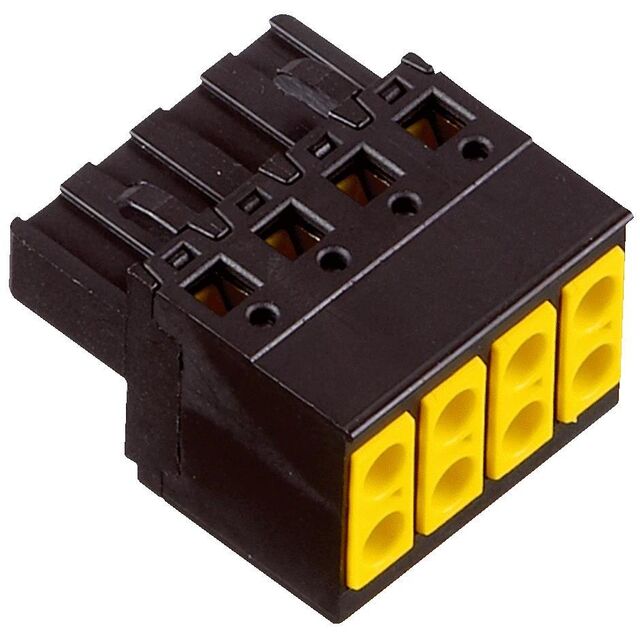

Specification	2045890

Color	Black
Features	Retention Latches (Non-Wire Side)
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	8, 4
Plug Wire Entry Angle	180 °
Position Types	Input, Mate
Positions Per Level	Mate, Input
Positions Per Level (Input)	8
Positions Per Level (Mate)	4
Termination Style	Screwless - Leg Spring, Push-In Spring
Type	Female Sockets, Plug
Wire Gauge or Range - AWG (Max)	24 AWG
Wire Gauge or Range - AWG (Min)	16 AWG
Wire Gauge or Range - mm² (Maximum)	1.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.25 mm²
