111-01703
ActiveHELLERMANNTYTON

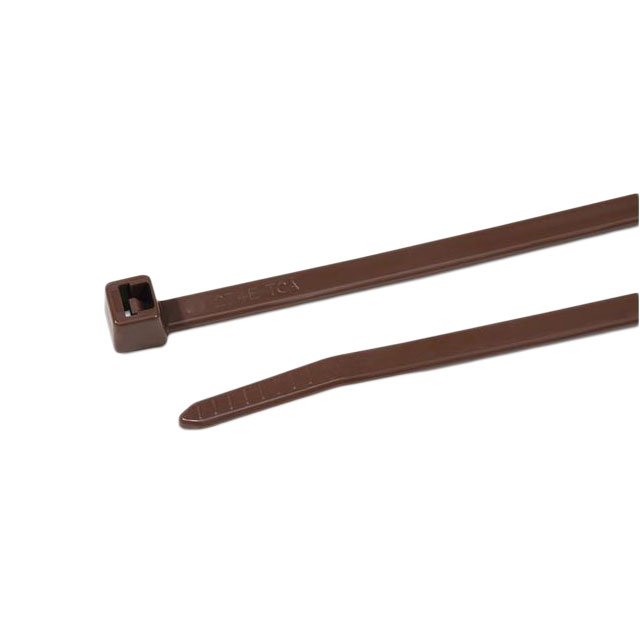

T50R BRN STANYL 1,000/BAG
Deep-Dive with AI
Search across all available documentation for this part.
111-01703
ActiveHELLERMANNTYTON
T50R BRN STANYL 1,000/BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 111-01703 | 111-01 Series |
|---|---|---|
| Bundle Diameter | 50 mm | 35 - 254 mm |
| Bundle Diameter | 1.97 in | 1.38 - 10 in |
| Bundle Diameter | - | 22 - 150 mm |
| Bundle Diameter | - | 0.86 - 5.91 " |
| Color | Brown | Black, Yellow, Blue, Gray, Beige, Brown, Silver, Green, Red |
| Features | - | Halogen Free, UV Resistant, Heat Stabilized, Impact Resistant, Impact Modified, Aerial Cable Support, High Temperature, Corrosion Resistant, Chemical Resistant, Weather Resistant, UV Stabilized |
| Length - Actual | - | 0.328 - 2.749 ft |
| Length - Actual | - | 100 - 838 mm |
| Length - Actual | - | 3.93 - 7.87 in |
| Length - Actual [x] | 202 mm | 1.45 - 565.3 mm |
| Length - Actual [x] | 0.663 ft | 0.328 - 1.855 ft |
| Length - Actual [x] | 7.95 " | 3.94 - 441.9 in |
| Length - Approximate | 8 in | 4 - 33 in |
| Length - Approximate | - | 6 in |
| Material | Polyamide (PA46), Nylon 4/6 | Polyacetal (POM), Polyamide (PA66), Nylon 6/6, Polyamide (PA66), Metal Detectable, Nylon 6/6, Polypropylene (PP), Polyamide (PA46), Nylon 4/6, Polyaryletherketone (PAEK), Polyetheretherketone (PEEK), Stainless Steel 316, Polyamide (PA12), Nylon 12, Ethylenterafluorineethylene (ETFE) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tensile Strength | 22.68 kg | 8.16 - 418.21 kg |
| Tensile Strength | 50 lbs | 18 - 922 lbs |
| Width | - | 4.83 - 12.5 mm |
| Width | - | 0.1 - 0.492 in |
| Width | - | 2.54 - 8 mm |
| Width [y] | 0.181 in | 0.094 - 0.63 in |
| Width [y] | 4.6 mm | 2.4 - 16 mm |
| Wire/Cable Tie Type | Standard, Locking | Standard, Locking |
111-01 Series
Cable Tie Mounts 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 4000/carton
| Part | Length - Approximate | Mounting Type | Tensile Strength | Tensile Strength | Material | Length - Actual [x] | Length - Actual [x] | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Wire/Cable Tie Type | Color | Width | Width [x] | Length - Actual [x] | Features | Width [y] | Width [y] | Bundle Diameter | Bundle Diameter | Width [x] | Length - Actual | Length - Actual | Length - Approximate [x] | Length - Actual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HELLERMANNTYTON 111-01569 | 20.75 in | Free Hanging (In-Line) | 22.68 kg | 50 lbs | Polyacetal (POM) | 530 mm | 1.739 ft | 150 mm | 5.91 " | Locking, Standard | Black | 8.89 mm | 0.35 in | |||||||||||
HELLERMANNTYTON 111-01934 | 4 in | Free Hanging (In-Line) | 8.16 kg | 18 lbs | Polyamide (PA66), Nylon 6/6 | 100 mm | 0.328 ft | 22 mm | 0.86 in | Locking, Standard | 3.94 in | Halogen Free | 0.096 in | 2.45 mm | ||||||||||
HELLERMANNTYTON 111-01168 | 15 in | Free Hanging (In-Line) | 22.68 kg | 50 lbs | Metal Detectable, Nylon 6/6, Polyamide (PA66) | Locking, Standard | Yellow | 4.83 mm | 0.19 in | 109.22 mm | 4.3 in | |||||||||||||
HELLERMANNTYTON 111-01572 | 20.75 in | Free Hanging (In-Line) | 79.4 kg | 175 lbs | Polyacetal (POM) | 530 mm | 1.739 ft | 150 mm | 5.91 " | Locking, Standard | Black | 8.89 mm | 0.35 in | |||||||||||
HELLERMANNTYTON 111-01668 | 15.25 in | Free Hanging (In-Line) | 38.56 kg | 85 lbs | Metal Detectable, Polypropylene (PP) | 387 mm | 1.27 ft | 100 mm | 3.94 in | Locking, Standard | Blue | 0.299 in | 7.59 mm | |||||||||||
HELLERMANNTYTON 111-01568 | 8 in | Free Hanging (In-Line) | 22.68 kg | 50 lbs | Polyamide (PA46), Nylon 4/6 | 202 mm | 0.663 ft | Locking, Standard | Gray | 7.95 " | 0.181 in | 4.6 mm | 50 mm | 1.97 in | ||||||||||
HELLERMANNTYTON 111-01138 | 8.75 in | Free Hanging (In-Line) | 54.43 kg | 120 lbs | Polyamide (PA66), Nylon 6/6 | 225 mm | 0.738 ft | 56 mm | 2.2 in | Locking, Standard | Black | 8.86 " | Heat Stabilized, Impact Resistant, UV Resistant | 0.299 in | 7.59 mm | |||||||||
HELLERMANNTYTON 111-01699 | 8 in | Free Hanging (In-Line) | 45.36 kg | 100 lbs | Polyaryletherketone (PAEK) | 200.66 mm | 0.658 ft | 50.8 mm | 2 in | Locking, Standard | Beige | 0.315 in | 7.9 in | 8 mm | ||||||||||
HELLERMANNTYTON 111-01667 | 15.25 in | Free Hanging (In-Line) | 15.42 kg | 34 lbs | Metal Detectable, Polypropylene (PP) | 110 mm | 4.33 " | Locking, Standard | Blue | 0.181 in | 4.6 mm | 1.28 ft | 390 mm | |||||||||||
HELLERMANNTYTON 111-01665 | Free Hanging (In-Line) | 13.26 kg | 29 lbs | Metal Detectable, Polypropylene (PP) | 150 mm | 0.492 ft | Locking, Standard | Blue | 5.91 " | 0.138 " | 3.5 mm | 35 mm | 1.38 in | 6 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 75000 | $ 0.36 | |
Description
General part information
111-01 Series
Cable Tie Mounts 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 4000/carton
