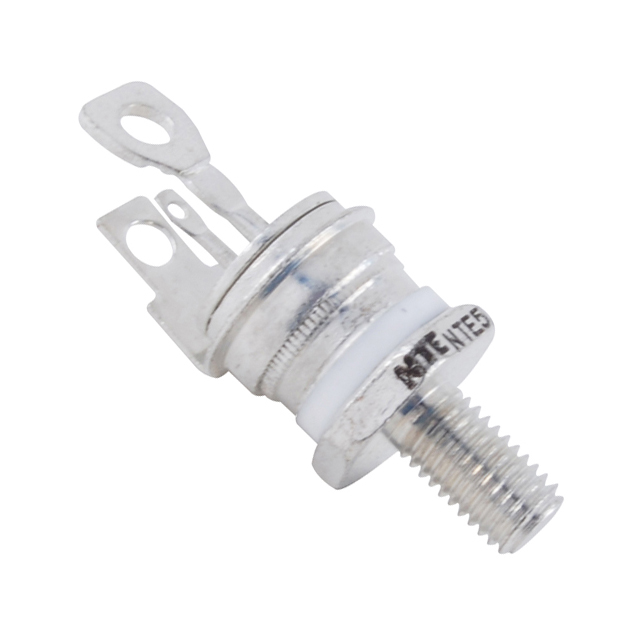

NTE5564
ActiveNTE Electronics, Inc
SCR 400V 35A TO48
NTE5564
ActiveNTE Electronics, Inc
SCR 400V 35A TO48
Description
General part information
NTE5564
SCR 400 V 35 A Standard Recovery Stud Mount TO-48 Isolated Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE5564 |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Non Rep. Surge (Itsm) | 300 A |
| Current - Non Rep. Surge Frequencies | 50Hz, 60Hz |
| Current - Non Rep. Surge Type | Itsm |
| Current - Off State (Max) | 2 mA |
| Current - On State (It (RMS)) (Max) | 35 A |
| Mounting Type | Stud Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | TO-48-3, TO-208AA, Stud |
| Package Name | TO-48 Isolated Stud |
| SCR Type | Standard Recovery |
| Voltage - Off State | 400 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
