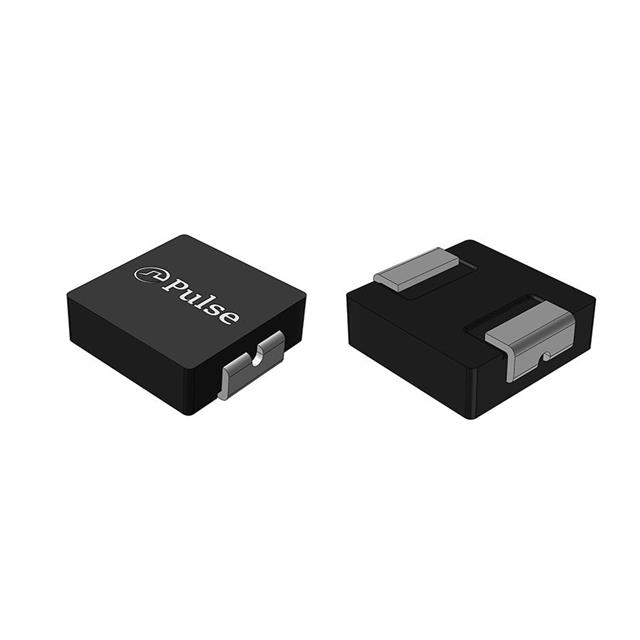

PA4546.251NLT
ActivePulse Electronics
IND MOLDED POWDER 4.7X4.31X1.2
PA4546.251NLT
ActivePulse Electronics
IND MOLDED POWDER 4.7X4.31X1.2
Description
General part information
PA4546.251NLT
250 nH Shielded Molded Inductor 8.2 A 10mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4546.251NLT |
|---|---|
| Current - Saturation (Isat) | 16 A |
| Current Rating | 8.2 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 250 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.175 in |
| Size / Dimension Width | 0.16 in |
| Tolerance | 20 % |
| Type | Molded |
