2907590

Active

Phoenix Contact

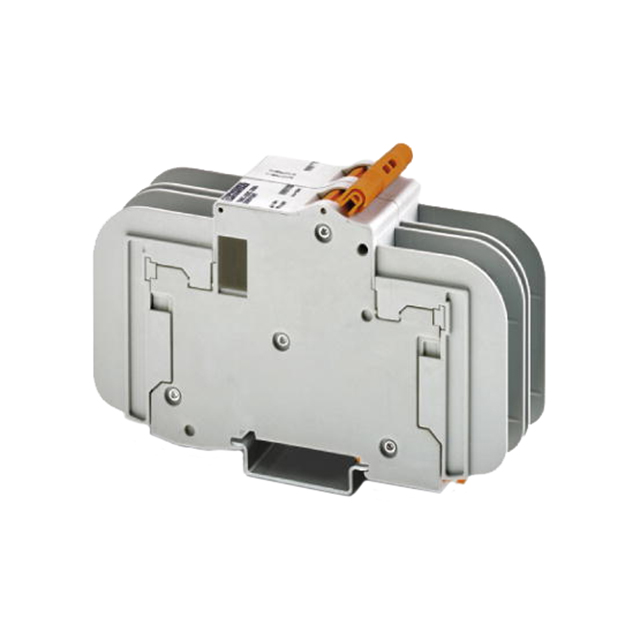

CIRCUIT BREAKERS TMC 82C 08A

Search across all available documentation for this part.

Active

Phoenix Contact

CIRCUIT BREAKERS TMC 82C 08A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2907590	TMC 8 Series

Accessory Type	-	Shunt Trip
Actuator Type	Lever	Lever
Breaker Type	Thermal Magnetic	Thermal Magnetic
Current Rating (Amps)	8 A	3 - 32 A
For Use With/Related Products	-	TMC 8, Circuit Breaker
Mounting Type	DIN Rail	DIN Rail
Number of Poles	2	1 - 3
Voltage Rating - AC	480 V	277 - 480 V
Voltage Rating - DC	125 VDC	60 - 125 VDC

Circuit Breakers TMC 83D 03A

Part	Current Rating (Amps)	Voltage Rating - DC	Actuator Type	Mounting Type	Voltage Rating - AC	Breaker Type	Number of Poles	For Use With/Related Products	Accessory Type
Phoenix Contact 2907642	30 A	60 VDC	Lever	DIN Rail	277 V	Thermal Magnetic	1
Phoenix Contact 2907676	3 A	125 VDC	Lever	DIN Rail	480 V	Thermal Magnetic	3
Phoenix Contact 2907590	8 A	125 VDC	Lever	DIN Rail	480 V	Thermal Magnetic	2
Phoenix Contact 2908227								Circuit Breaker, TMC 8	Shunt Trip
Phoenix Contact 2907668	32 A	125 VDC	Lever	DIN Rail	480 V	Thermal Magnetic	2
Phoenix Contact 2907491	16 A	60 VDC	Lever	DIN Rail	277 V	Thermal Magnetic	1
Phoenix Contact 2907592	12 A	125 VDC	Lever	DIN Rail	480 V	Thermal Magnetic	2
Phoenix Contact 2907563	6 A	60 VDC	Lever	DIN Rail	277 V	Thermal Magnetic	1
Phoenix Contact 2907683	8 A	125 VDC	Lever	DIN Rail	480 V	Thermal Magnetic	3
Phoenix Contact 2907621	20 A	125 VDC	Lever	DIN Rail	480 V	Thermal Magnetic	3
