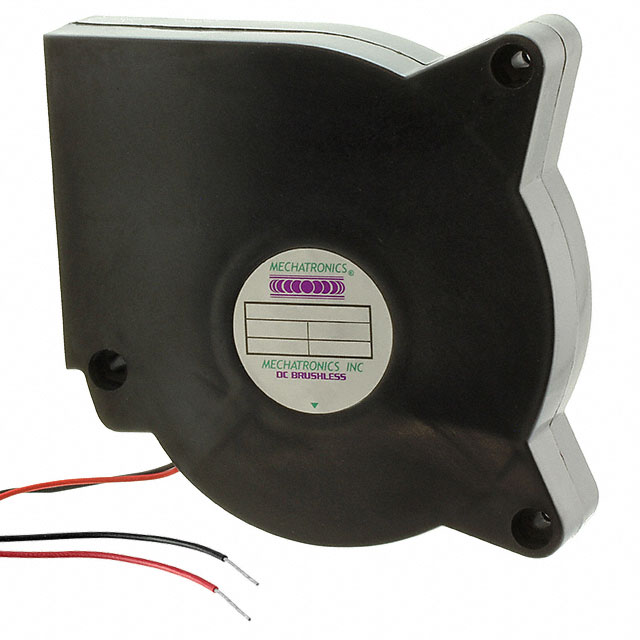

B1232H12B-BSR-E-CC-IM4

Active

Mechatronics Fan Group

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

B1232H12B-BSR-E-CC-IM4

Active

Mechatronics Fan Group

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B1232H12B-BSR-E-CC-IM4	B1232H Series

Air Flow	28 CFM	28 CFM
Air Flow	0.784 m³/min	0.784 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	800 mA	480 - 800 mA
Fan Type	Blower	Blower
Features	Thermal Overload Protector (TOP), Conformal Coating	Thermal Overload Protector (TOP), Conformal Coating, PWM Control
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	49 dB	49 dB
RPM	2800 RPM	2800 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [z]	120 mm	120 mm
Static Pressure	169.4 Pa	169.4 Pa
Static Pressure	0.68 in H2O	0.68 in H2O
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	12 VDC	12 - 24 VDC
Voltage Range	-	5.5 VDC
Voltage Range	-	14 V
Weight	320.24 g	319.78 - 320.24 g
Weight	0.706 lb	0.705 - 0.706 lb
Width [y]	32 mm	32 mm

B1232H Series

FAN BLOWER 120X32MM 12VDC WIRE

Part	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Current Rating (Amps)	Features	Voltage - Rated	Static Pressure	Static Pressure	Width [y]	Fan Type	Approval Agency	Noise	RPM	Air Flow	Air Flow	Bearing Type	Termination	Material - Blade	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]
Mechatronics Fan Group B1232H12B-BSR-E-CC-IM4	Square/Rounded	120 mm	120 mm	800 mA	Conformal Coating, Thermal Overload Protector (TOP)	12 VDC	169.4 Pa	0.68 in H2O	32 mm	Blower	CE, cUL, TUV, UL	49 dB	2800 RPM	28 CFM	0.784 m³/min	Ball	2 Wire Leads	Polybutylene Terephthalate (PBT)	320.24 g	0.706 lb
Mechatronics Fan Group B1232H12B-BSR-E	Square/Rounded	120 mm	120 mm	800 mA	Thermal Overload Protector (TOP)	12 VDC	169.4 Pa	0.68 in H2O	32 mm	Blower	CE, cUL, TUV, UL	49 dB	2800 RPM	28 CFM	0.784 m³/min	Ball	2 Wire Leads	Polybutylene Terephthalate (PBT)	320.24 g	0.706 lb
Mechatronics Fan Group B1232H12B6-BSR	Square/Rounded	120 mm	120 mm	800 mA	PWM Control, Thermal Overload Protector (TOP)	12 VDC	169.4 Pa	0.68 in H2O	32 mm	Blower	CE, cUL, TUV, UL	49 dB	2800 RPM	28 CFM	0.784 m³/min	Ball	3 Wire Leads	Polybutylene Terephthalate (PBT)	320.24 g	0.706 lb
Mechatronics Fan Group B1232H12B-BSR-I832	Square/Rounded	120 mm	120 mm	800 mA	Thermal Overload Protector (TOP)	12 VDC	169.4 Pa	0.68 in H2O	32 mm	Blower	CE, cUL, TUV, UL	49 dB	2800 RPM	28 CFM	0.784 m³/min	Ball	2 Wire Leads	Polybutylene Terephthalate (PBT)	320.24 g	0.706 lb
Mechatronics Fan Group B1232H24B-BSR-E	Square/Rounded	120 mm	120 mm	480 mA	Thermal Overload Protector (TOP)	24 VDC	169.4 Pa	0.68 in H2O	32 mm	Blower	CE, cUL, TUV, UL	49 dB	2800 RPM	28 CFM	0.784 m³/min	Ball	2 Wire Leads	Polybutylene Terephthalate (PBT)	320.24 g	0.706 lb
Mechatronics Fan Group B1232H12B-BSR	Square/Rounded	120 mm	120 mm	800 mA	Thermal Overload Protector (TOP)	12 VDC	169.4 Pa	0.68 in H2O	32 mm	Blower	CE, cUL, TUV, UL	49 dB	2800 RPM	28 CFM	0.784 m³/min	Ball	2 Wire Leads	Polybutylene Terephthalate (PBT)	319.78 g	0.705 lb	5.5 VDC	14 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.62

Description

General part information

B1232H Series

Fan Blower 12VDC Square/Rounded - 120mm L x 120mm H Ball 28.0 CFM (0.784m³/min) 2 Wire Leads
