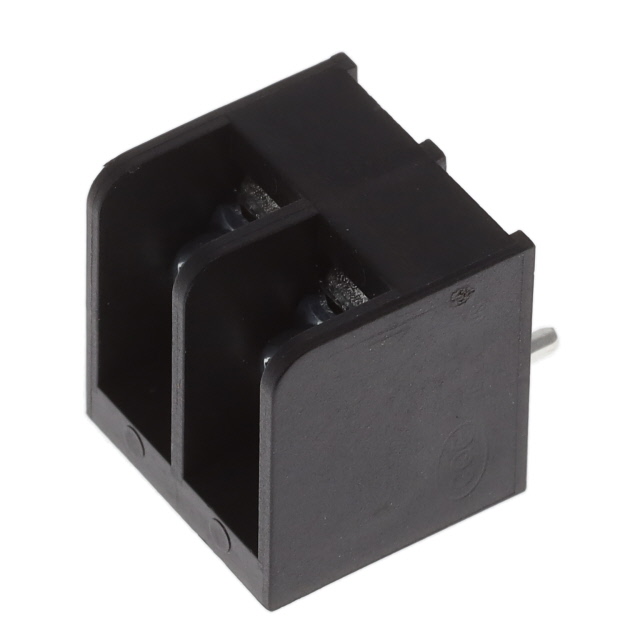

YK2210203000G

Active

AMPHENOL ANYTEK

CONN BARRIER STRIP 2CIRC 0.25"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YK2210203000G

Active

AMPHENOL ANYTEK

CONN BARRIER STRIP 2CIRC 0.25"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.90
		10	$ 0.56
		25	$ 0.48
		50	$ 0.43
		100	$ 0.42
		250	$ 0.36
		500	$ 0.34
		1000	$ 0.31
		5000	$ 0.24

Description

General part information

YK221 Series

2 Circuit 0.250" (6.35mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YK2210203000G	YK221 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	10 A	10 A
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	2	2 - 29
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	2	2 - 29
Number of Wire Entries	-	27
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.25 in	0.25 in
Pitch [x]	6.35 mm	6.35 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	250 VDC	250 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

YK221 Series

CONN BARRIER STRIP 14CIRC 0.25"

Part	Current Rating (Amps)	Pitch [x]	Pitch [x]	Barrier Type	Voltage Rating	Number of Wire Entries	Number of Rows	Bottom Termination	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Terminal Screw Material	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Screw Finish	Number of Circuits	Material - Insulation	Terminal Block Type	Color	Material Flammability Rating	Number of Circuits [custom]
AMPHENOL ANYTEK YK2211403000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	14	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	14	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2210603000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	6	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	6	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2211703000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	17	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	17	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2211003000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	10	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	10	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2211603000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	16	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	16	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2210803000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	8	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc		Thermoplastic	Barrier Block	Black	UL94 V-0	8
AMPHENOL ANYTEK YK2211303000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	13	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	13	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2211103000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	11	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	11	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2212903000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	29	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc	29	Thermoplastic	Barrier Block	Black	UL94 V-0
AMPHENOL ANYTEK YK2210903000G	10 A	0.25 in	6.35 mm	3 Wall (Tri)	250 VDC	9	1	PC Pin	Screws with Captive Plate	22 AWG	17.5 AWG	Through Hole	Steel	-40 °C	115 °C	Zinc		Thermoplastic	Barrier Block	Black	UL94 V-0
