ASE515P
ActiveAC Connectors

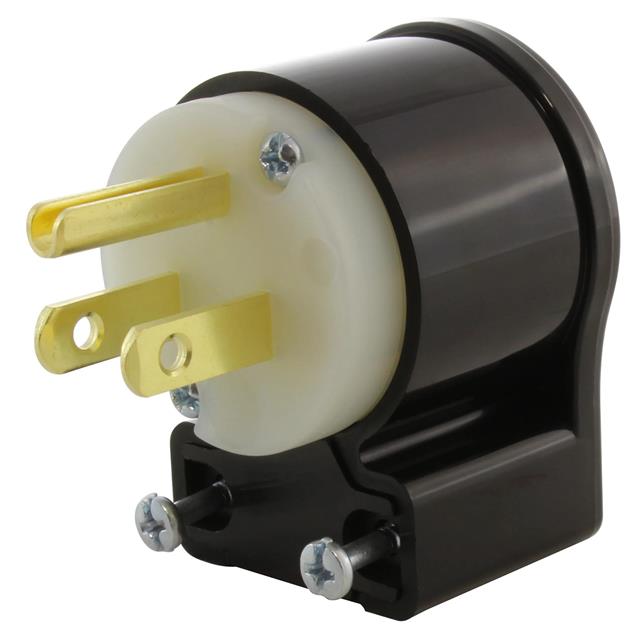

ELBOW NEMA 5-15 MALE PLUG
ASE515P
ActiveAC Connectors
ELBOW NEMA 5-15 MALE PLUG
Description
General part information
ASE515P
Power Connector Plug, Male Blades NEMA 5-15P
Technical Specifications
Parameters and characteristics for this part
| Specification | ASE515P |
|---|---|
| Approval Agency | cULus |
| Connector Style | NEMA 5-15P |
| Connector Type | Plug, Male Blades |
| Current Rating | 15 A |
| Features | Chemical Resistant, Weather Resistant, Impact Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
