Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.88 | |
| 10 | $ 33.53 | |||
| 50 | $ 30.85 | |||
| 100 | $ 28.50 | |||
| 250 | $ 27.16 | |||
General part information
Solid State SPST-NO (1 Form A) Module
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2966773 |
|---|---|
| Approval Agency | EN, IEC |
| Load Current | 100 mA |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 24 V |
| Voltage - Load [Max] | 48 V |
| Voltage - Load [Min] | 3 V |

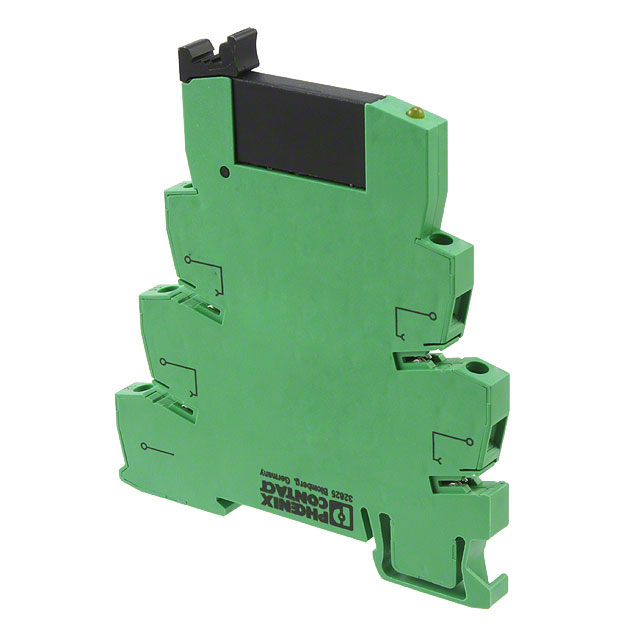

SSR RELAY SPST-NO 100MA 3-48V
| Part | Voltage - Input | Output Type | Mounting Type | Voltage - Load [Max] | Voltage - Load [Min] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Load Current | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2966773 | 24 V | DC | DIN Rail | 48 V | 3 V | EN, IEC | -20 C | 60 °C | Module | 100 mA | Screw Terminal |
